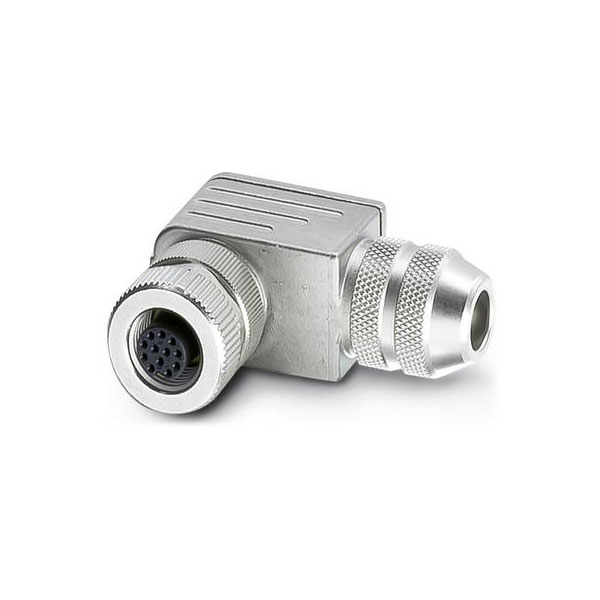

The Plug-in connector SACC-M12FR-12SOL-PG 9-M SH 1404413 by Phoenix Contact is a robust M12 socket designed for reliable sensor/actuator connections. Part of the PLUSCON industrial plug line, it is commonly used in automation environments. It offers secure and flexible connectivity in harsh industrial applications.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-40 - 85°C |
| Coating housing |
Other |
| Coding |
A |
| Conductor Cross Section |
0.25mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.08 - 0.25mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.08 - 0.25mm² |
| Connectable conductor cross section multi-wired |
0.08 - 0.25mm² |
| Connectable conductor cross section solid-core |
0.08 - 0.25mm² |
| Connection |
Soldering |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter connector |
20.2mm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Other |
| Inflammability class of insulation material according to UL94 |
HB |
| Material of contact surface |
Gold |
| Material thread ring |
Other |
| Min. number of insertion cycles |
100 |
| Misc Attribute |
SACC-M12FR-12SOL-PG 9-M SH |
| Nominal Current |
1.5A |
| Number of control contacts |
12 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
1.5A |
| Rated voltage |
30V |
| Screened |
true |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Soldering connection |
| Type of housing |
Angled |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
