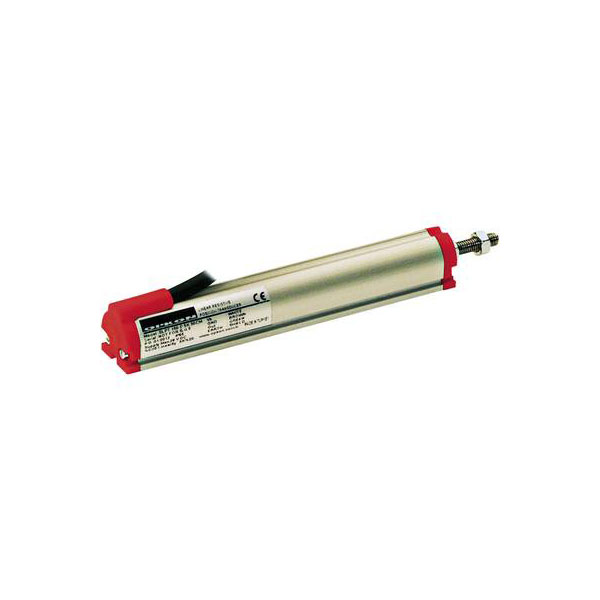

Opkon SLPT-50-D-2K-1M Sensor 28V DC 50mm Compact Movable Brackets

The Opkon SLPT-50-D-2K-1M is a position sensor designed to operate with a 28 V DC power supply and has a stroke length of 50 mm. It is a linear potentiometer position sensor suitable for precise distance measurements in linear actuators. Typical applications include machinery automation and industrial equipment requiring accurate position tracking.

Type	Position sensor
IP Rating	IP53
Maximum Operating Temperature	80°C
Maximum Temperature	80°C
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Mounting Type	Movable clips
Nominal Voltage	28V DC
Operating Temperature	-20 up to 80°C
Speed (max.)	5m/s
Stroke Length	50mm
