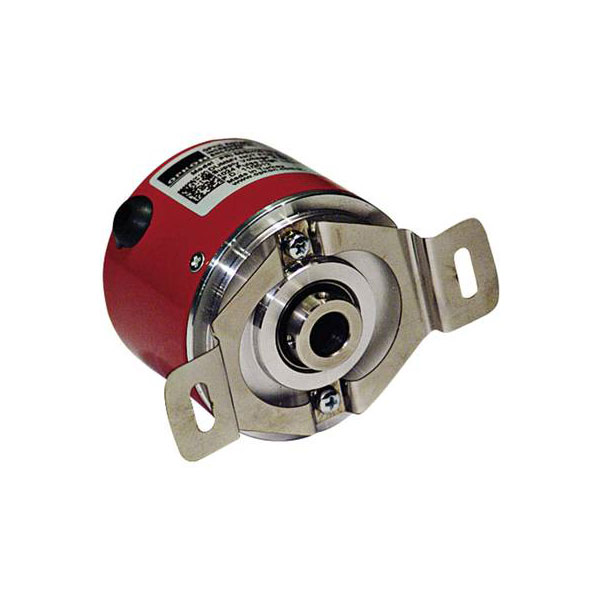

Opkon PRI58H8HLD1000ZZV32M5R Incremental Encoder for Speed/Position Monitoring

Opkon PRI 58H8 HLD 1000 ZZ V3 2M5R is an incremental rotary encoder designed for precise position and angle sensing. With a robust optical system, it provides reliable rotation pulse generation for industrial automation applications. This encoder is ideal for use in robotics, conveyor systems, and motor feedback control.

Type	Rotary encoder
Pulses per Revolution	1000
Shaft Diameter	8mm
(Ø)	58mm
Cable Length	2.50m
Dim	(Ø) 58mm
Interfaces	HTL
IP Rating	IP50
Material (shaft)	Stainless steel
Max. operating voltage	24V DC
Maximum Temperature	+80°C
Min. operating voltage	5V DC
Min. temperature	-20°C
Model	Incremental
Number of rotations	4000
Operating Voltage	5 - 24 V DC
Technology	Optical
