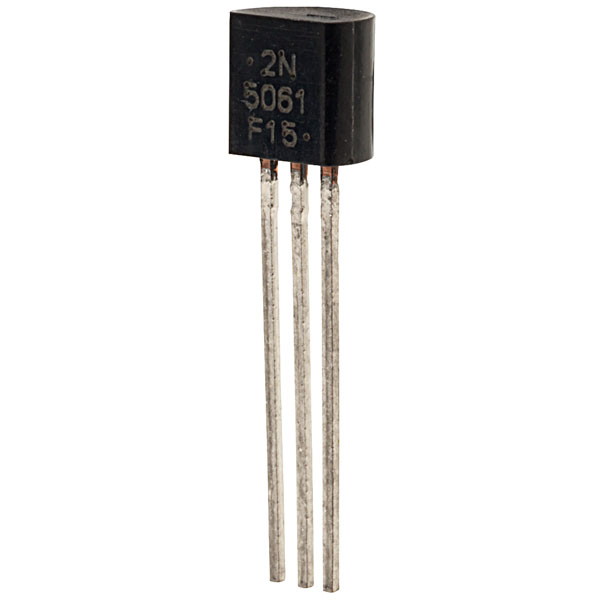

ON Semi 2N5061 60V 0.8A TO92 SCR

Miniature SCRs for low current/voltage applications. When a one-off voltage is applied to the gate, the diode conducts. It will continue to conduct until the current between the anode and cathode is reduced.

• Annular PNPN devices designed for high volume consumer applications such as relay and lamp drivers, small motor controls, gate drivers for larger thyristors, and sensing and detection circuits
• Sensitive gate reverse blocking thyristor
• 60V peak repetitive off-state voltage
• 0.8A RMS on-state current
• 10A peak non-repetitive surge current
• 200uA gate trigger current
• 0.8V gate trigger voltage
• 5mA holding current
• 1.7V on-state voltage
• -40 to +110°C
• Supplied in an inexpensive plastic TO-92 package
• Passivated surface for reliability and uniformity
