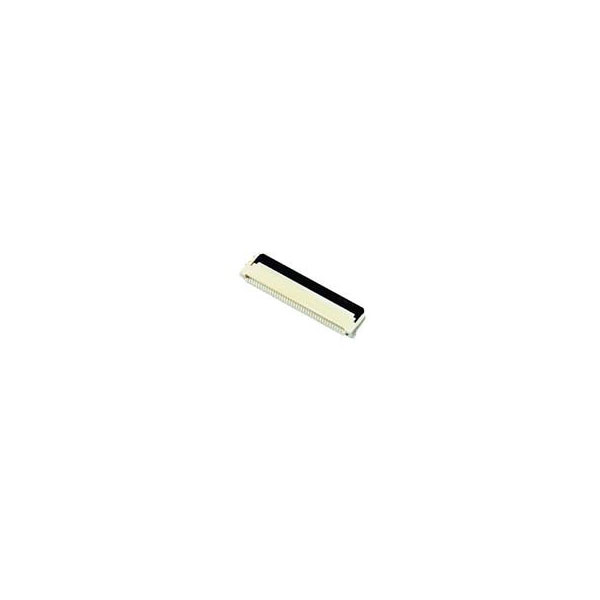

Omron XF2M-4015-1A FFC&FPC Connector Female Unshrouded .5mm 40P BackLock

Omron
Order Code:

15-5009

Brand: Omron MPN: XF2M-4015-1A
Qty Unit Price (Ex VAT)
150+ £1.45
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 150
6,000 in stock, despatched in 5 working days

The Omron XF2M-4015-1A is a female connector designed for FFC and FPC applications.

It features unshrouded contacts with a 0.5mm pitch and supports 40 positions.

The connector includes a backlock mechanism for secure connections.

It's typically used in electronic devices requiring reliable flat cable connectivity.


Type FPC Connector
Connector gender Female
Contact Gender Female
Contact Material Copper Alloy
Contact Plating Gold over Nickel
Contact position Dual
Current 500mA
Housing Material Liquid Crystal Polymer
Locking Mechanism Yes
Maximum Operating Temperature 85°C
Minimum Operating Temperature 30°C
Mount Type Surface Mount
Number of Contacts 40
Number of Rows 1
Orientation Right Angle
Pitch 0.5mm
Product Type FPC Connector
Series XF2M
Standards/Approvals No
Sub Type Easy-On FFC/FPC Connector
Termination Type Solder
Voltage 50V ac
