Motors vs servos: what’s the difference and when should you use each?

In industrial automation, robotics and motion control, the terms motor and servo are often used interchangeably, but they shouldn’t be. While both are used to create movement, they differ significantly in control, precision, feedback and application.

Choosing the wrong one can lead to poor performance, wasted energy, or unnecessary cost. Choosing the right one can dramatically improve efficiency, accuracy and system reliability.

This guide breaks down the differences clearly, with practical insight into when to use each.

What is a motor?

A motor is a device that converts electrical energy into mechanical motion.

There are many types, but the most common in industrial and commercial use include:

• AC motors (induction motors)
• DC motors (brushed and brushless)

Most standard motors operate on a simple principle:

Apply power → motor spins

Key characteristics of standard motors

• Continuous rotation
• Speed depends on input voltage or frequency
• Typically no built-in feedback
• Simple and cost-effective
• Designed for bulk movement rather than precision

Common applications

Standard motors are widely used in:

• Conveyor systems
• Fans and pumps
• Compressors
• HVAC systems
• Basic machinery

These are applications where consistent motion matters more than exact positioning.

What is a servo motor?

A servo motor (servo) is a motor combined with a control system and feedback mechanism.

It is designed for precise control of position, speed and torque.

A typical servo system includes:

• Motor (often brushless DC)
• Encoder or feedback device
• Servo drive/controller

How servos work

Unlike standard motors, servos operate in a closed-loop system:

1. A command is sent (e.g. rotate to 90°)
2. The servo moves
3. The encoder measures actual position
4. The system continuously corrects any deviation

This allows for extremely accurate and responsive motion.

Key characteristics of servo motors

• Precise position control
• High accuracy and repeatability
• Fast response time
• Closed-loop feedback system
• Can hold position under load
• More complex and higher cost

Common applications

Servos are used where precision is critical, including:

• Robotics and automation
• CNC machinery
• Pick-and-place systems
• Packaging equipment
• Aerospace systems
• Camera stabilisation systems

Motors vs servos: the core differences

1. Control System

• Motor: Open-loop (no feedback)
• Servo: Closed-loop (constant feedback and correction)

This is the single biggest difference.

2. Precision and accuracy

• Motor: Limited control over exact position
• Servo: Highly precise (down to fractions of a degree)

If your application needs exact positioning, a standard motor won’t cut it.

3. Speed and torque control

• Motor: Basic control via voltage or frequency
• Servo: Fine-tuned, dynamic control across full range

Servos maintain torque even at low speeds - something many motors struggle with.

4. Complexity

• Motor: Simple installation and operation
• Servo: Requires tuning, programming and integration

Servos introduce more setup time but significantly greater capability.

5. Cost

• Motor: Lower upfront cost
• Servo: Higher initial investment

However, servos can reduce long-term costs through efficiency, accuracy and reduced waste.

6. Feedback and monitoring

• Motor: No inherent feedback
• Servo: Continuous monitoring of position, speed and torque

This makes servos ideal for smart manufacturing and Industry 4.0 environments.

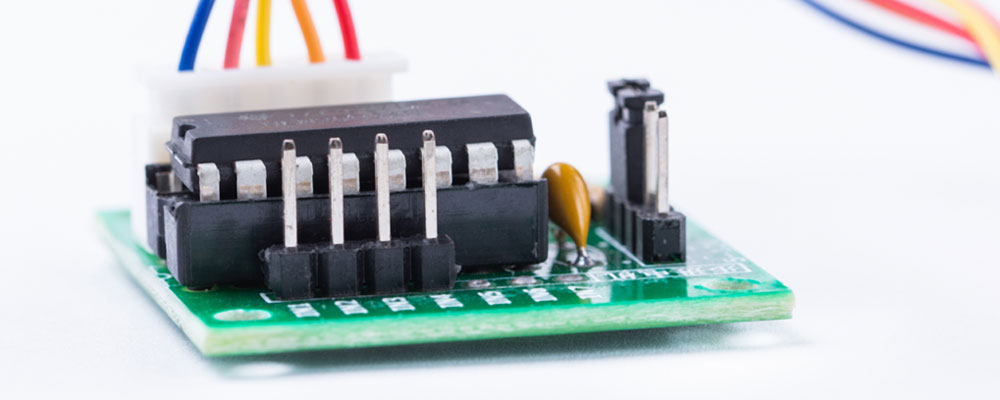

What about stepper motors?

Steppers often sit between standard motors and servos.

Stepper motor snapshot

• Moves in discrete steps
• Offers good positional control without feedback
• Simpler and cheaper than servos
• Can lose position under load (no correction)

When to use a stepper

• Moderate precision requirements
• Lower cost constraints
• Light load applications
• 3D printers and small CNC machines

However, for high-speed, high-precision, or high-load environments, servos are typically superior.

For a deeper dive into stepper motor fundamentals, applications, and selection criteria, see our dedicated guide on stepper motors and their importance in modern automation

Efficiency and performance considerations

While standard motors are simpler, servos often provide:

• Better energy efficiency (only use power when needed)
• Reduced wear due to controlled motion
• Less material waste in precision processes
• Improved throughput in automated systems

In high-performance environments, these gains can outweigh the higher initial cost.

Final thoughts

The difference between motors and servos comes down to control vs simplicity.

• Motors are ideal for straightforward, continuous motion
• Servos are essential for precision, responsiveness and intelligent control

As automation, robotics and smart manufacturing continue to evolve, servo systems are becoming increasingly important, but standard motors remain indispensable for simpler, cost-driven applications.

Choosing correctly isn’t about picking the “better” technology - it’s about selecting the right tool for the job.
