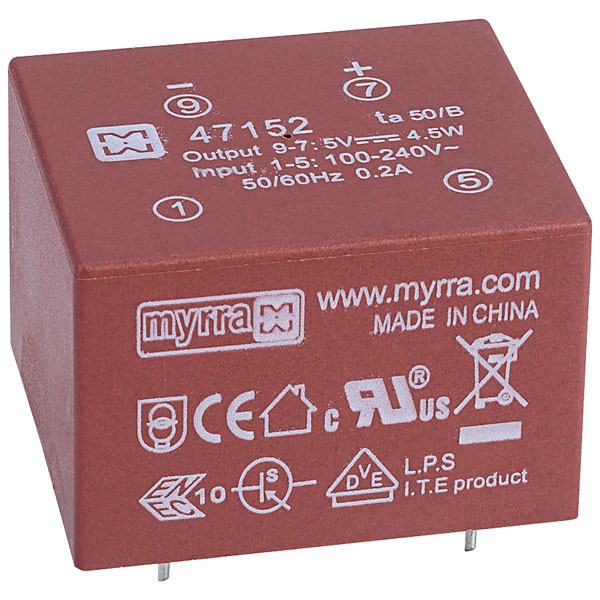

Myrra 47152 4.5W 5V AC-DC Power Supply Single Output

A 4.5W, 5V DC power supply from the 47000 series of single output power supplies. The PSUs have a universal AC/DC input range and come in a compact, encapsulated PCB mounting package with the same footprint as the E130 transformer, allowing you to upgrade your applications without having to redesign your PCBs.

The PSU is regulated and features a very low standby consumption (< 0.2W) and better energy efficiency that meets the requirements of Energy Star and EC Code of Conduct.

• 50° Ambient temperature
• PCB Mounting
• Safety IEC, UL/CUL, CE, VDE, ENEC Mark
• Emissions conform to EN and FCC
• Rated to UL 94-V0

Output Power Max	4.5W
Output Voltage	5V
Output Current	900mA
Dimensions	32 x 27.8 x 21.8mm
Efficiency	68%
Input Voltage	85 to 265V

Technical Specification
