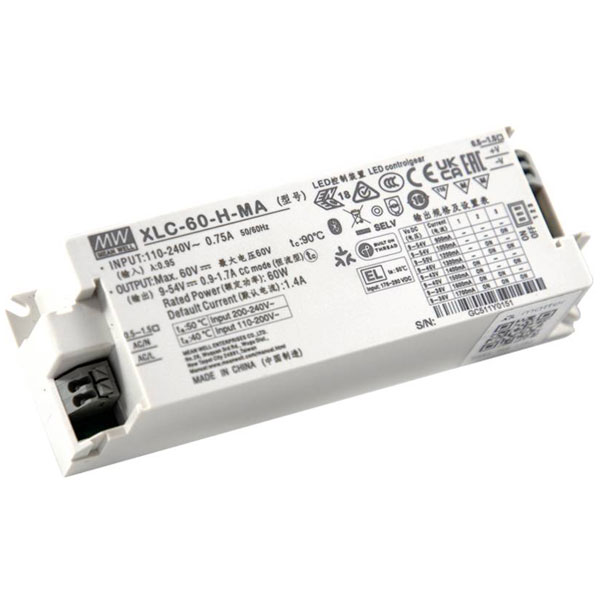

MW Mean Well XLC-60-24-MA LED converter 60 W

Mean Well XLC-60-24-MA, a robust LED driver, functions as a constant current LED power supply unit, delivering a maximum output of 60 watts. This LED electric ballast is engineered to meet the demanding requirements of LED lighting systems by ensuring stable current output, which enhances the longevity and performance of LED modules. With a compact design suitable for various installations, it is particularly well-suited for applications in architectural lighting, industrial lighting, and outdoor LED lighting systems where reliability and efficiency are critical. Due to its high efficiency and wide input voltage range, the XLC-60-24-MA supports both energy conservation and compatibility with diverse electrical environments.

Type	LED converter
Connection	Spring-loaded terminal
Dimensions	(L x W x H) 136 x 45 x 32 mm
Height	32mm
IP Rating	Protection class II
Length	136mm
Max. temperature	-25°C
Maximum Temperature	-25°C
Min. temperature	+85°C
Minimum Operating Temperature	+85°C
Power	60W
Product Type	LED converter
Width	45mm
