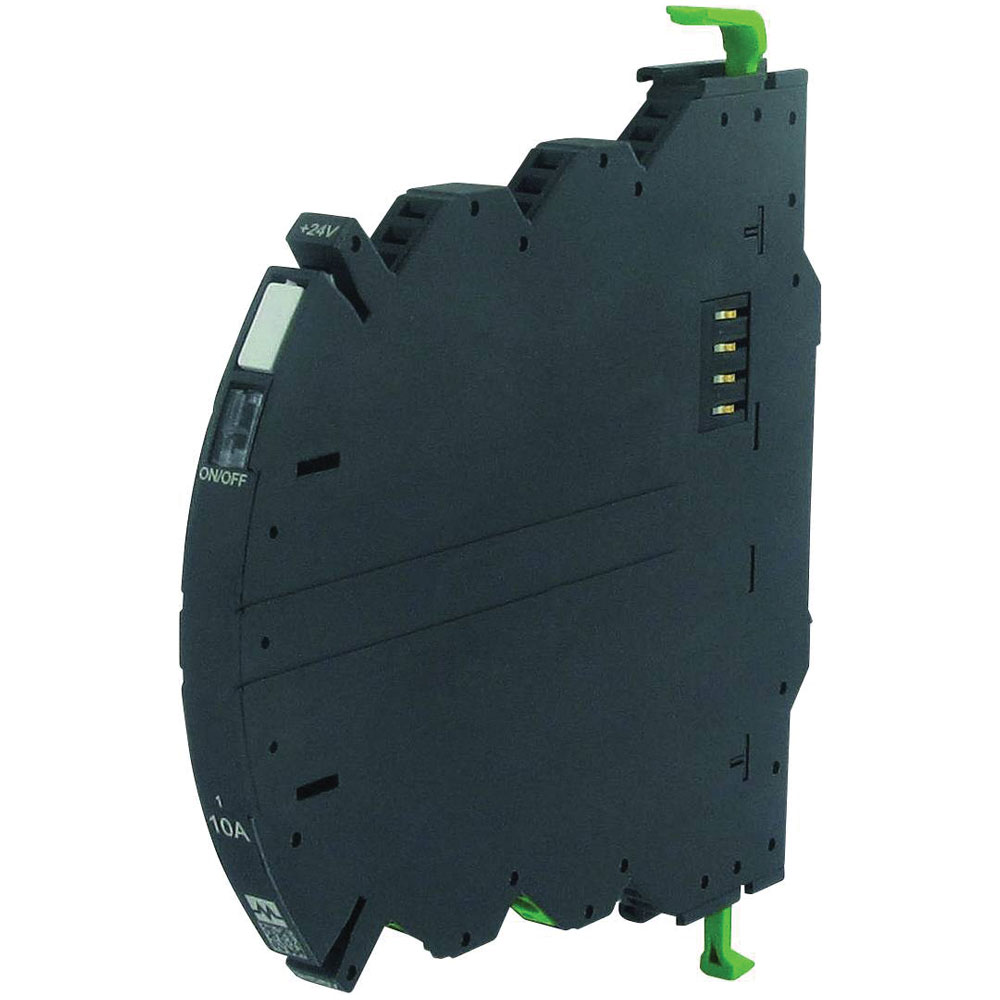

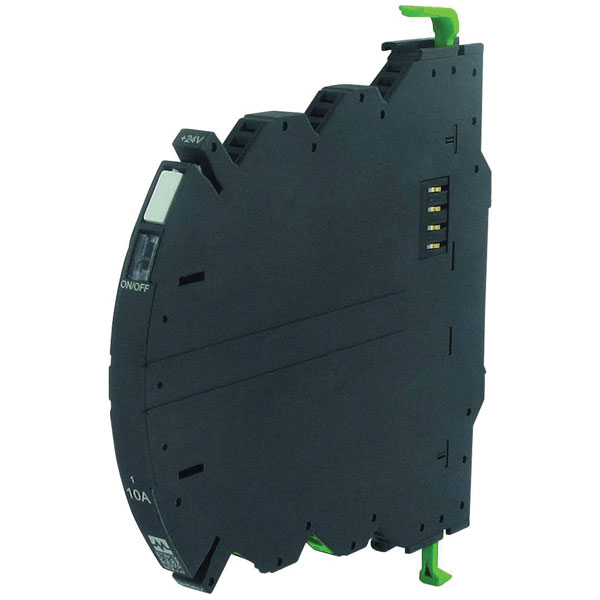

Murrelektronik 9000-41094-0101000 Load Monitor 9-30V DC Single Unit

Murrelektronik manufactures the Load Monitor 9000-41094-0101000, which operates on a voltage range of 9 - 30 V DC. This monitoring relay is designed to supervise load circuits and ensure system reliability. It is typically employed in industrial automation settings to monitor equipment performance and prevent overloads.

Type	Load monitor
Adjustment range (amperage)	1 - 10A
Amperage adjustment range ( .)	1A
Amperage adjustment range (max.)	10A
AWG (min.)	24
AWG max.	12
Connection	Spring-loaded terminal
Cross section (flexible) (max.)	4mm2
Cross section (flexible) (min.)	0.2mm2
Cross section (inflexible) (max.)	2.5mm2
Cross section (inflexible) (min.)	0.2mm2
Depth	114mm
Dim (W x H x D)	24 x 130 x 114mm
Height	130mm
IP Rating	IP20
Max. operating voltage [DC]	30V
Maximum Temperature	+55°C
Min. operating voltage [DC]	9V
Min. temperature	-25°C
Operating Voltage	9 - 30 DCV
Width	24mm
