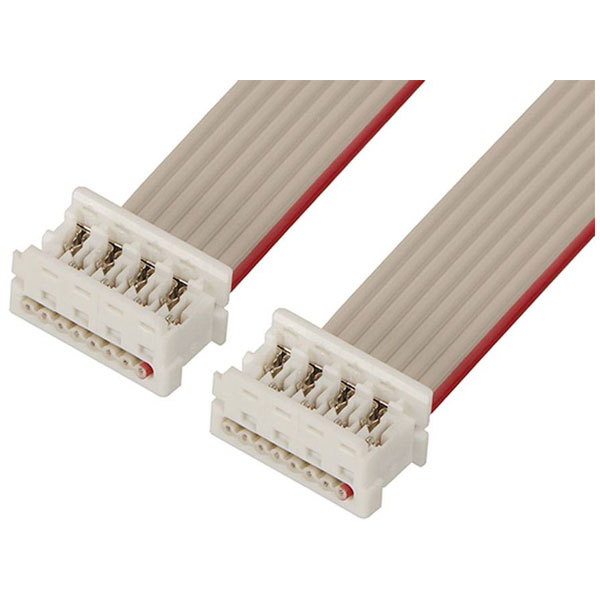

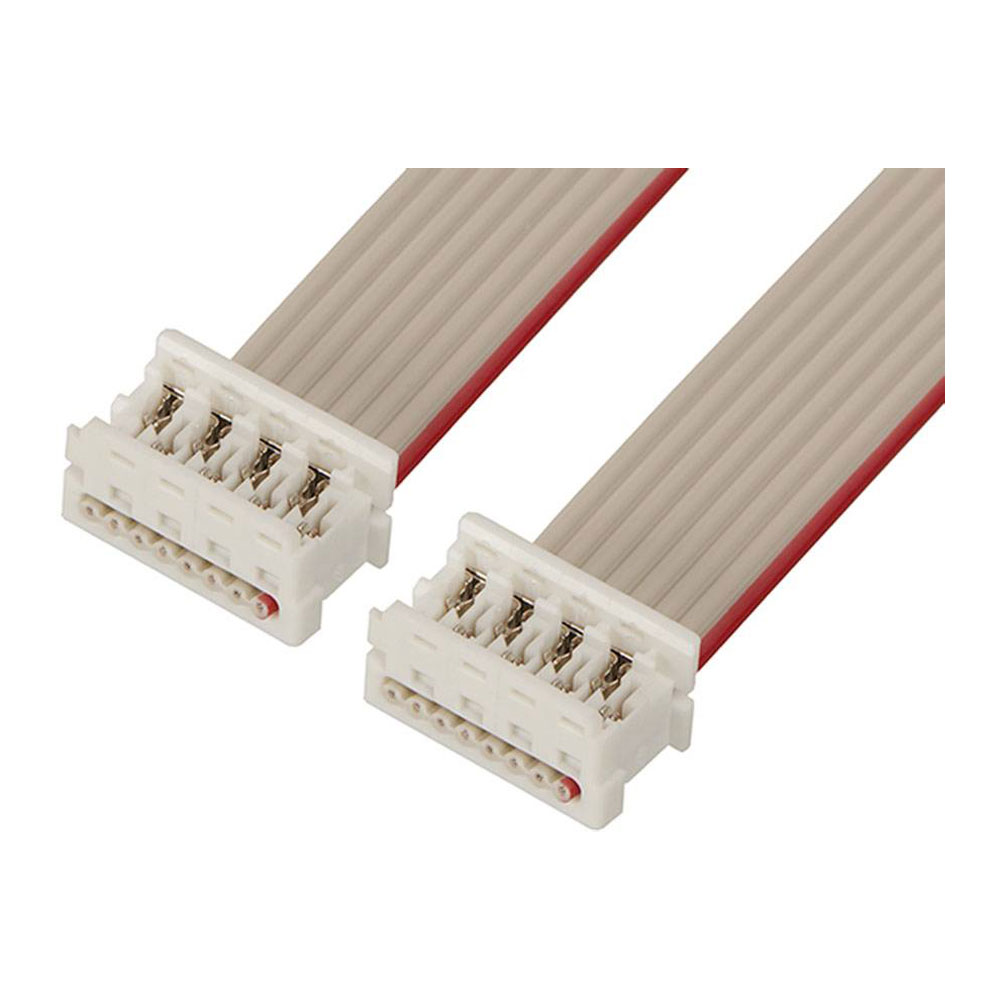

The Molex Picoflex IDT ribbon cable 923150808 is a high-quality product designed for enhanced electrical connections. This pre-assembled ribbon cable is ideal for use in industrial and electronic applications. Manufactured by Molex, it ensures reliability and performance in demanding environments.
| Connector 1 |
IDT |
| Connector 2 |
IDT |
| Number of Cores |
8 |
| Conductor Cross Section |
0.08 mm² |
| Colour |
Grey |
| Length |
80mm |
| Type |
Pre-fab braid |
| Assembly configuration |
Dual Ended Connectors |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Cable Length |
80.00mm |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
8 |
| Circuits maximum |
8 |
| Color resin |
Natural |
| Connector to connector |
Picoflex IDT-to-IDT |
| Current maximum per contact |
1.2A |
| Delivery unit |
100 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering number |
923150808 |
| Engineering Series Name |
PICOFLEX HARNESS |
| Engineering Series No |
92315 |
| First published date |
2007-06-18 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Female-Female |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
No |
| Material metal |
Phosphor Bronze |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Minimum line quantity |
4000 |
| Net weight |
2.110/g |
| Number of Rows |
2 |
| Packaging Type |
Bag |
| Pitch |
1.27mm |
| Pitch mating interface |
1.27mm |
| Plating min mating |
2.032µm |
| Plating min termination |
2.032µm |
| Primary pack qty |
50 |
| Product name |
Picoflex |
| Product number display |
923150808 |
| Product number hyphen |
92315-0808 |
| Product number sap |
0923150808 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
92315 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
False |
| Singleended |
No |
| Taxonomy |
Power and Signal Cable Assemblies |
| Termination interface style |
IDT or Pierce |
| Upc |
800753290006 |
| Voltage maximum |
250V |
| Waterproof dustproof |
No |
| Wire cable type |
PVC, Ribbon Cable |
| Wire size awg |
28 |
