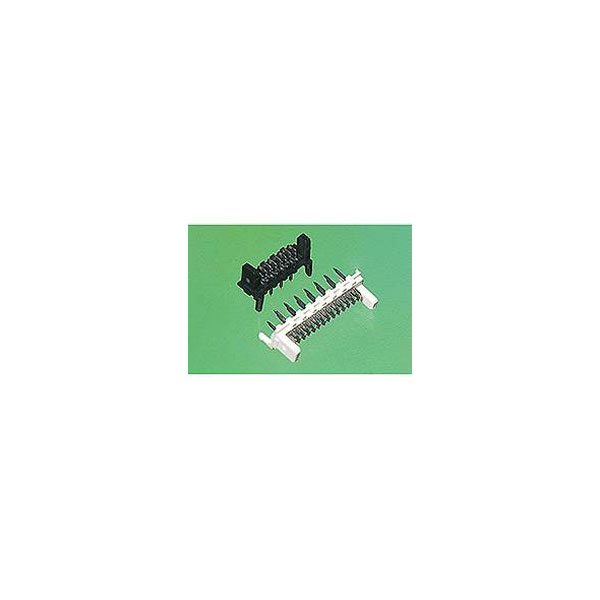

Molex manufactures the 903250008 pin strip, featuring 8 pins with a contact spacing of 1.27 mm. This standard pin strip is typically used for creating secure electrical connections in electronic assemblies. It is suitable for various applications in consumer electronics, prototyping, and circuit board assembly.
| Type |
Pin strip (standard) |
| Number of Positions |
8 |
| Number of Rows |
1 |
| Application |
Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Breakaway |
No |
| Case Material |
Polyester |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
8 |
| Circuits maximum |
8 |
| Color resin |
Black |
| Colour |
Black |
| Comments |
Low Profile |
| Component type |
PCB Header |
| Connection |
Soldering |
| Connector contact surface |
Tin |
| Connector orientation |
Perpendicular (to the PCB) |
| Contact Material |
Brass |
| Cross Section |
1.27mm |
| Csa |
LR19980 |
| Current maximum per contact |
1.2A |
| Delivery unit |
3000 |
| Design registration eligibility |
true |
| Durability mating cycles max |
30 |
| Duration at max process temperature seconds |
5 |
| ELV status |
Not Relevant |
| Engineering number |
903250008 |
| Engineering Series Name |
PICO FLEX PC MOUNT H |
| Engineering Series No |
90325 |
| First mate last break |
No |
| First published date |
2009-03-26 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 33 |
| Glow wire capable |
No |
| Guide to mating part |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lead free process capability |
WAVE |
| Lock to mating part |
Yes |
| Material metal |
Brass |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Max cycles at max process temperature |
1 |
| Max. temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
6000 |
| Misc Attribute |
Molex MOL Industrial Solution |
| Net weight |
0.389/g |
| Nominal Current |
1.2A |
| Nominal Voltage |
250V |
| Orientation |
Vertical |
| Packaging Type |
Bag |
| Pcb retention |
Yes |
| Pcb thickness recommended |
1.60mm |
| Pitch mating interface |
1.27mm |
| Pitch termination interface |
1.27mm |
| Plating min termination |
3.000µm |
| Polarized to mating part |
Yes |
| Polarized to pcb |
Yes |
| Primary pack qty |
250 |
| Process temperature max c |
230 |
| Product name |
Picoflex |
| Product number display |
903250008 |
| Product number hyphen |
90325-0008 |
| Product number sap |
0903250008 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
90325 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shrouded |
No |
| Stackable |
No |
| Taxonomy |
PCB Headers and Receptacles |
| Temperature range operating |
-40° to +105°C |
| Termination interface style |
Through Hole |
| Ul |
E29179 |
| Upc |
800753538450 |
| Voltage maximum |
250V |
