Molex 878321420 Pin Strip 14-pin 2 Mm Spacing Dual Row Lead-free

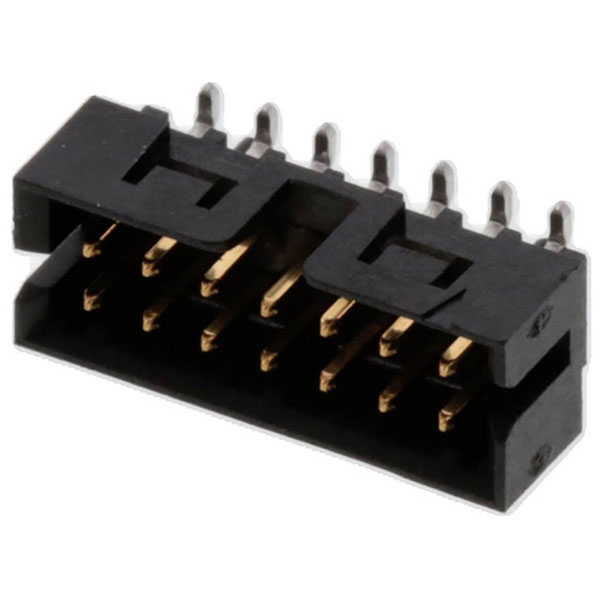

The Molex 878321420 pin strip features a 2 mm contact spacing and a total of 14 pins arranged in 2 rows, with an encodable and locking mechanism for secure connections. This component is ideal for use in compact electronic assemblies and is typically supplied in a tube format. Molex is the manufacturer, known for producing reliable connectors suited for varied applications in electronic and electrical systems.

Type	Pin strip
Number of Positions	14
Number of Rows	2
Application	Signal, Wire-to-Board, Board-to-Board
Base unit of measure	PC
Base unit of measure desc	piece
Board contact surface	Tin
Breakaway	No
Case Material	Nylon (NL)
China ro h s status	Compliant per SJ/T 11365-2006
Circuits loaded	14
Circuits maximum	14
Coating thickness (PCB side)	1.905µm
Color resin	Black
Colour	Black
Comments	Contact Molex for application in automotive industry
Component type	PCB Header
Connection	SMT
Connector coating thickness	0.381µm
Connector contact surface	Gold
Connector orientation	Perpendicular (to the PCB)
Contact Material	Phosphor bronze
Cross Section	2mm
Csa	LR19980
Current maximum per contact	2.0A
Delivery unit	3200
Design registration eligibility	true
Durability mating cycles max	100
Duration at max process temperature seconds	5
ELV status	Compliant per 2000/53/EC
Engineering number	87832-1420
Engineering Part No	87832-1420
Engineering Series Name	2mm SMT Shrd Hdr
Engineering Series No	87832
First mate last break	No
First published date	2007-06-08
Flammability	94V-0
G a d s l/ i m d s	Compliant with Exemption 44; 34; 33
Glow wire capable	No
Guide to mating part	Yes
H f l h status	Not Low-Halogen per IEC 61249-2-21
Keying to mating part	No
Lead free process capability	REFLOW
Lock to mating part	Yes
Material metal	Phosphor Bronze
Material plating mating	Gold
Material plating termination	Matte Tin
Material resin	Nylon
Material type	Finished Goods
Max cycles at max process temperature	3
Max. temperature	+105°C
Min. temperature	-55°C
Minimum line quantity	9600
Misc Attribute	Molex MOL Power & Signal Sol.
Net weight	0.671/g
Nominal Current	2A
Nominal Voltage	125V
Orientation	Vertical
Packaging Type	Tube
Pcb locator	Yes
Pcb retention	Yes
Pitch mating interface	2.00mm
Pitch termination interface	2.00mm
Plating min mating	0.381µm
Plating min termination	1.880µm
Polarized to pcb	No
Primary pack qty	32
Process temperature max c	260
Product name	Milli-Grid
Product number display	878321420
Product number hyphen	87832-1420
Product number sap	0878321420
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	87832
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Shrouded	Fully
Stackable	No
Taxonomy	PCB Headers and Receptacles
Temperature range operating	-55° to +105°C
Termination interface style	Surface Mount
Ul	E29179
Upc	822348231973
Voltage maximum	125V
