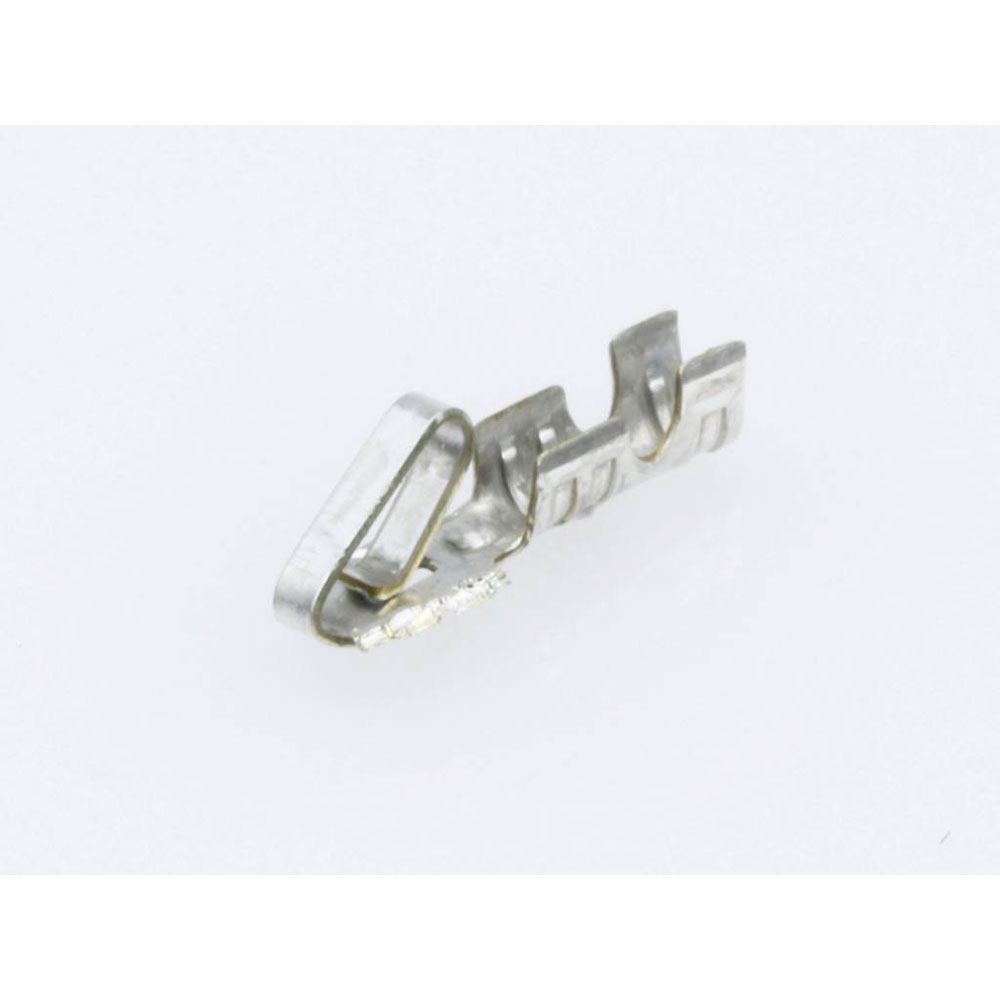

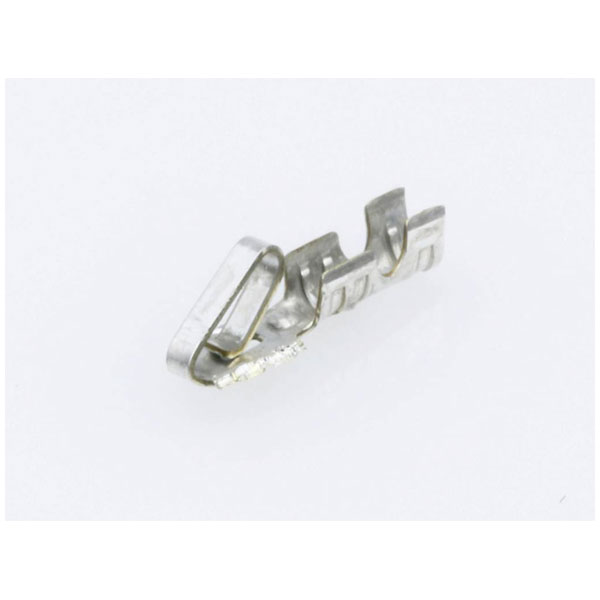

Molex 8500113 KK 254 Crimp 22-30 AWG Hot Tin Dip Terminal

The Molex 8500113 crimp contact ensures secure electrical connections with its high-quality metal construction. Typically used in automotive and industrial applications, it offers reliable performance in robust environments. Its design supports easy integration into a variety of connector systems. Product may be supplied in Ammo pack format

Type	Crimp contact
Pin or Socket	Female
Wire Gauge	30 - 22
Application	Power, Wire-to-Board
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Compliant per SJ/T 11365-2006
Delivery unit	40000
Design registration eligibility	false
ELV status	Compliant per 2000/53/EC
Engineering number	2759-(P909)B
First published date	2007-05-16
G a d s l/ i m d s	Compliant with Exemption 44
Gender	Female
H f l h status	Low-Halogen per IEC 61249-2-21
Material metal	Brass
Material plating mating	Tin
Material plating termination	Tin
Material type	Finished Goods
Minimum line quantity	80000
Net weight	0.065/g
Packaging Type	Reel
Plating min mating	2.540µm
Plating min termination	2.540µm
Primary pack qty	10000
Product name	KK 254
Product number display	08500113
Product number hyphen	08-50-0113
Product number sap	0008500113
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	2759
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Taxonomy	Crimp Terminals
Termination interface style	Crimp or Compression
Upc	800753614444
Wire insulation diameter	1.57mm max.
Wire size awg	22, 24, 26, 28, 30
