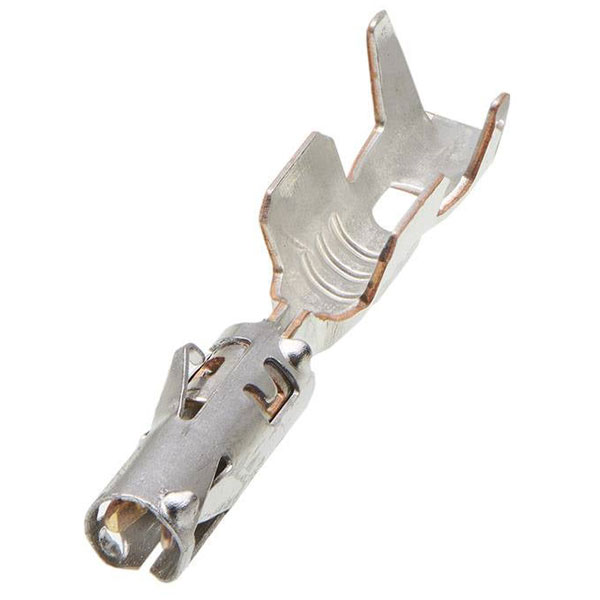

Molex 643231039 Cp Terminal Female Tin Plated 1.50mm X 0.80mm

Molex manufactures the 643231039 crimp contact featuring high conductivity and reliable performance. This component is typically used in electrical connections for various applications such as automotive and industrial equipment. Its durability ensures stable and efficient power or signal transmission.

Type	Crimp contact
Wire Gauge	16 - 14
Application	Automotive, Power, Wire-to-Wire, Wire-to-Board
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Compliant per SJ/T 11365-2006
Comments	Current tested on a fully loaded connector, current for temperature increase of 40°C; Current max = 12A for 1.50mm Terminal (2.00mm² wire)
Connector cross section	2mm²
Connector Type	Socket
Contact Finish	Tin plated
Current maximum per contact	12.0A
Delivery unit	27500
Design registration eligibility	true
ELV status	Compliant per 2000/53/EC
Engineering number	64323-1039
First published date	2008-05-09
G a d s l/ i m d s	Compliant with Exemption 44; 33
Gender	Female
H f l h status	Low-Halogen per IEC 61249-2-21
Material metal	High Copper Alloy
Material plating mating	Tin
Material plating termination	Tin
Material type	Finished Goods
Minimum line quantity	27500
Misc Attribute	MOL Automotive
Net weight	0.340/g
Packaging Type	Tape on Full reel
Plating min mating	1.524µm, 3.048µm
Primary pack qty	5500
Product name	CMC,CP Terminal
Product number display	643231039
Product number hyphen	64323-1039
Product number sap	0643231039
Rated voltage	14V DC
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	64323
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Taxonomy	Crimp Terminals
Termination interface style	Crimp or Compression
Test current	12A
Upc	883906129590
Voltage maximum	14V DC
Wire insulation diameter	2.10-2.80mm
Wire size awg	14, 16
Wire size mm	>1.00-2.00
