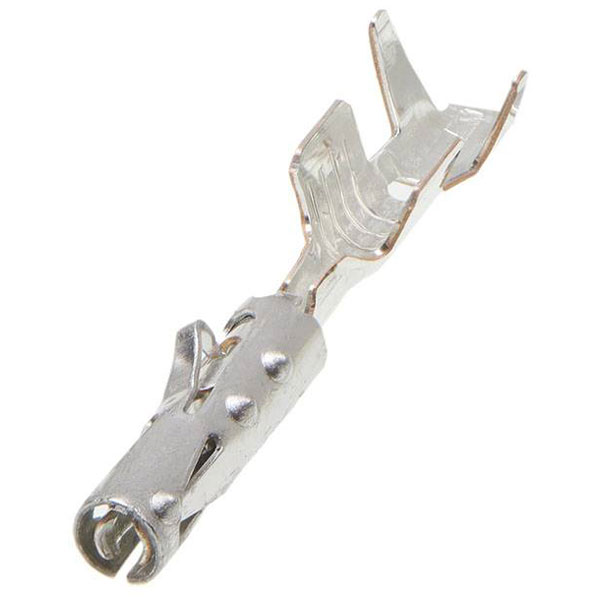

Molex 643221029 Cp Female Terminal Tin For 0.6mm Square Pins

The Molex crimp contact 643221029 is designed for high-performance electrical connections. This part is suitable for use in automotive and industrial applications where secure wiring is crucial. With a content of 1 piece, it ensures a reliable and durable connection solution.

Type	Crimp contact
Wire Gauge	18
Application	Automotive, Signal, Wire-to-Board
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Compliant per SJ/T 11365-2006
Comments	Current tested on a 5 terminals loaded connector, current for temperature increase of 40°C; Current max = 6A for 0.635mm Terminal (0.75mm² wire)
Connector cross section	0.75mm²
Connector Type	Socket
Contact Finish	Phosphor bronze tin plated
Current maximum per contact	6.0A
Delivery unit	57500
Design registration eligibility	true
ELV status	Compliant per 2000/53/EC
Engineering number	64322-1029
First published date	2008-05-09
G a d s l/ i m d s	Compliant with Exemption 44; 34; 33
Gender	Female
H f l h status	Low-Halogen per IEC 61249-2-21
Material metal	Phosphor Bronze
Material plating mating	Tin
Material plating termination	Tin
Material type	Finished Goods
Minimum line quantity	57500
Misc Attribute	MOL Automotive
Net weight	0.160/g
Packaging Type	Tape on Full reel
Plating min mating	2.000µm
Primary pack qty	11500
Product name	CMC,CP Terminal
Product number display	643221029
Product number hyphen	64322-1029
Product number sap	0643221029
Rated voltage	14V DC
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	64322
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Taxonomy	Crimp Terminals
Termination interface style	Crimp or Compression
Test current	6A
Upc	883906129477
Voltage maximum	250V AC
Wire insulation diameter	1.60-1.90mm
Wire size mm	0.75
