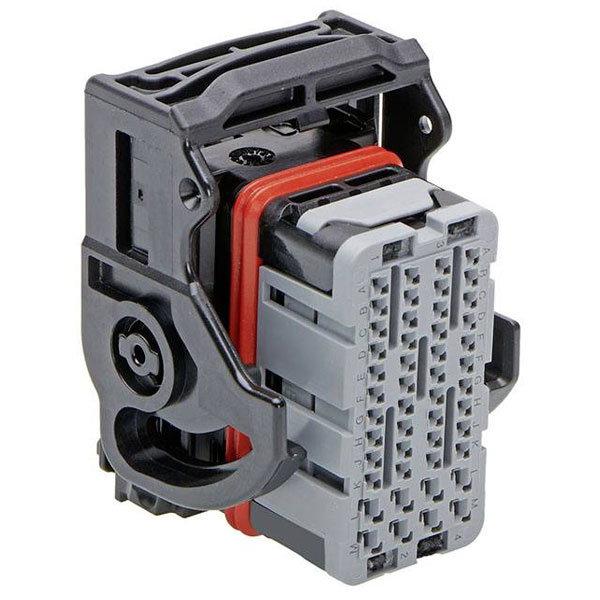

The Molex power connector, manufactured by Molex, features a grey finish and is identified by part number 643201318. It is primarily used for providing secure electrical connections in various electronic equipment. This connector is ideal for use in automotive, industrial, and consumer electronics applications.
| Type |
Power connector |
| Gender |
Receptacle |
| Application |
Automotive, Power, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Polyester |
| China ro h s status |
Not Relevant |
| Circuits detail |
8 x 1.5mm & 40 x 0.635mm terminals |
| Circuits maximum |
48 |
| Color resin |
Gray |
| Colour |
Grey |
| Comments |
Current tested on a 5 terminals loaded connector, current for temperature increase of 40°C; Current max = 6.0A for 0.635mm Terminal (0.75mm² wire) and 12.0A for 1.50mm Terminal (2.00mm² wire) |
| Connector Type |
Socket |
| Delivery unit |
220 |
| Design registration eligibility |
true |
| Elv status |
Compliant per 2000/53/EC |
| Engineering number |
64320-1318 |
| Engineering Part No |
64320-1318 |
| Engineering Series Name |
CMC 36-48Ckt matseal |
| Engineering Series No |
64320 |
| First published date |
2008-05-06 |
| G a d s l/ i m d s |
Compliant |
| Glow wire capable |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
Yes |
| Lock to mating part |
Yes |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Minimum line quantity |
440 |
| Misc Attribute |
Molex MOL Automotive |
| More detailed tech information |
Sealed, high-density, modular connecting system for Power Train and Body Electronics applications in cars, trucks, busses |
| Net weight |
35.700/g |
| Number of Rows |
4 |
| Number of Ways |
48 |
| Packaging Type |
Carton |
| Panel mount |
No |
| Pitch mating interface |
2.54mm, 3.70mm |
| Polarized to mating part |
Yes |
| Primary pack qty |
55 |
| Product name |
CMC |
| Product number display |
643201318 |
| Product number hyphen |
64320-1318 |
| Product number sap |
0643201318 |
| Reach status |
Contains Dodecamethylcyclohexasiloxane; Decamethylcyclopentasiloxane; Octamethylcyclotetrasiloxane per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
64320 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Seal |
Lock for counterpart |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +125°C |
| Test current |
12 A;2.5A |
| Upc |
883906129804 |
