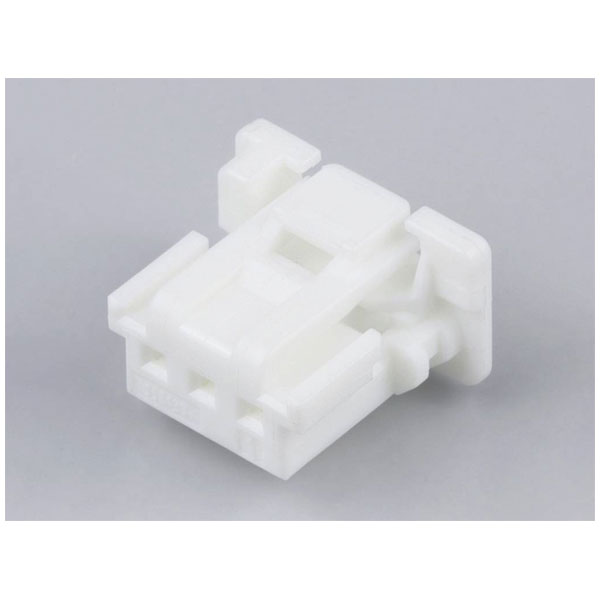

The Molex socket housing cable (part number 5601230300) offers a total of three pins with a contact spacing of 2 mm, which is ideal for creating secure electrical connections. Manufactured by Molex, this component is typically used in electronic assemblies that require compact and reliable connections. It comes in a bag containing one piece, making it suitable for small-scale projects or repairs.
| Type |
Socket housing cable |
| Pitch |
2.00mm |
| Number of Ways |
3 |
| Number of Rows |
1 |
| Application |
Automotive, Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
PBT |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
3 |
| Color resin |
White |
| Colour |
White |
| Connector Type |
Socket |
| CS |
2mm |
| Delivery unit |
20000 |
| Design registration eligibility |
true |
| ELV status |
Compliant per 2000/53/EC |
| Engineering number |
560123-0300 |
| Engineering Part No |
560123-0300 |
| Engineering Series Name |
DuraClik ISL |
| Engineering Series No |
560123 |
| First published date |
2014-10-15 |
| G a d s l/ i m d s |
Compliant |
| Gender |
Receptacle |
| Glow wire capable |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material resin |
PBT |
| Material type |
Finished Goods |
| Max. temperature |
+130°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
20000 |
| Misc Attribute |
Molex MOL Automotive |
| Net weight |
0.219/g |
| Packaging Type |
Bag |
| Panel mount |
No |
| Pitch termination interface |
2.00mm |
| Polarized to mating part |
Yes |
| Primary pack qty |
1000 |
| Product name |
DuraClik |
| Product number display |
5601230300 |
| Product number hyphen |
560123-0300 |
| Product number sap |
5601230300 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
560123 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +130°C |
| Ul |
E29179 |
| Upc |
889056009539 |
