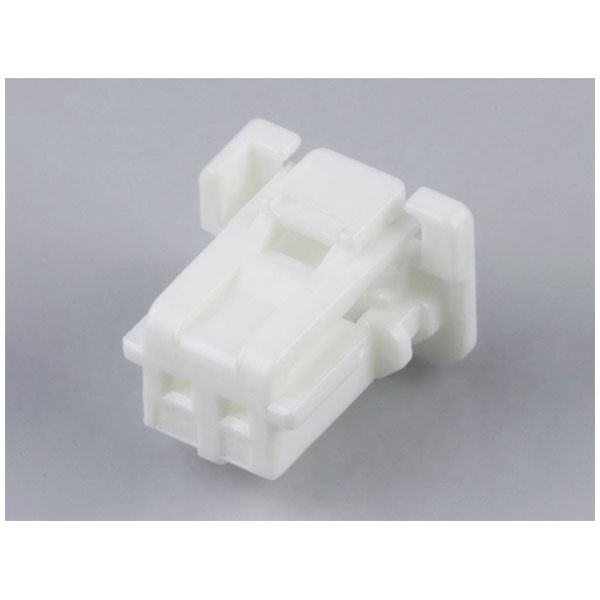

The Molex socket housing cable, part number 5601230200, is designed with a total of two pins and a contact spacing of 2 mm. This product is typically used for secure and efficient electrical connections in various electronic applications. It is ideal for use in consumer electronics, automotive systems, and industrial equipment, providing reliable connectivity in compact form factors.
| Type |
Socket housing cable |
| Pitch |
2mm |
| Number of Ways |
2 |
| Number of Rows |
1 |
| Mounting Type |
Cable mount |
| Mounting Direction |
Straight |
| Application |
Automotive, Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
PBT |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
2 |
| Color resin |
White |
| Colour |
White |
| Connector Type |
Socket |
| CS |
2mm |
| Delivery unit |
30000 |
| Design registration eligibility |
true |
| ELV status |
Compliant per 2000/53/EC |
| Engineering number |
560123-0200 |
| Engineering Part No |
560123-0200 |
| Engineering Series Name |
DuraClik ISL |
| Engineering Series No |
560123 |
| First published date |
2014-10-15 |
| G a d s l/ i m d s |
Compliant |
| Gender |
Receptacle |
| Glow wire capable |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material resin |
PBT |
| Material type |
Finished Goods |
| Maximum Temperature |
+130°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
30000 |
| Misc Attribute |
Molex MOL Automotive |
| Net weight |
0.176/g |
| Packaging Type |
Bag |
| Panel mount |
No |
| Pitch termination interface |
2.00mm |
| Polarized to mating part |
Yes |
| Primary pack qty |
1500 |
| Product name |
DuraClik |
| Product number display |
5601230200 |
| Product number hyphen |
560123-0200 |
| Product number sap |
5601230200 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
560123 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +130°C |
| Ul |
E29179 |
| Upc |
887191705521 |
