Molex 532611571 Picoblade Pin Strip 15-pin 1.25mm Friction Lock Smt

Molex
Order Code:

05-4093

Brand: Molex MPN: 532611571 EAN-13: 2050009142766
Qty Unit Price (Ex VAT)
5+ £0.972
125+ £0.934
500+ £0.927
2500+ £0.920
5000+ £0.913
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
998 available to back orderBack-order availability date - 15/01/2026

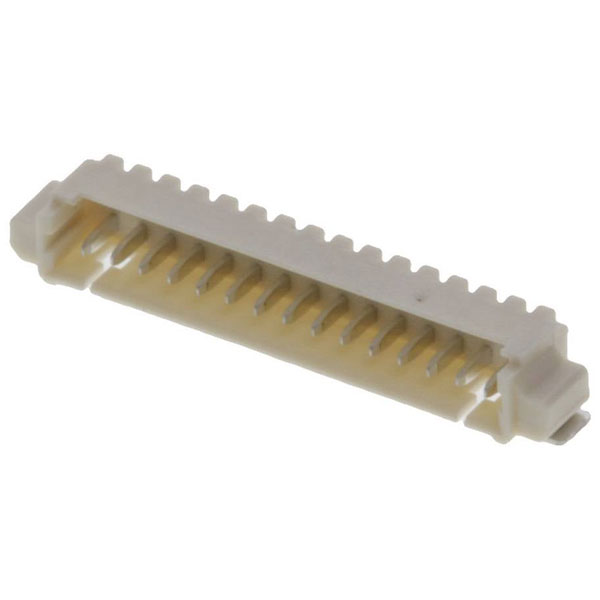

The Molex 532611571 built-in pin strip features 15 pins with a contact spacing of 1.25 mm. It is supplied as 1 pc(s) on a full reel, ideal for automated assembly processes. This standard pin strip is typically used in compact electronic and communication devices.
Type Built-in pin strip (standard)
Number of Positions 15
Number of Rows 1
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Coating thickness (PCB side) 1.016µm
Colour Ecru
Connection SMT
Connector coating thickness 1.016µm
Connector contact surface Tin
Connector orientation Parallel (to the PCB)
Contact Material Phosphor bronze
Cross Section 1.25mm
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute MOL Power & Signal Sol.
Nominal Current 1A
Nominal Voltage 125V
Packaging Type Tape on Full reel
