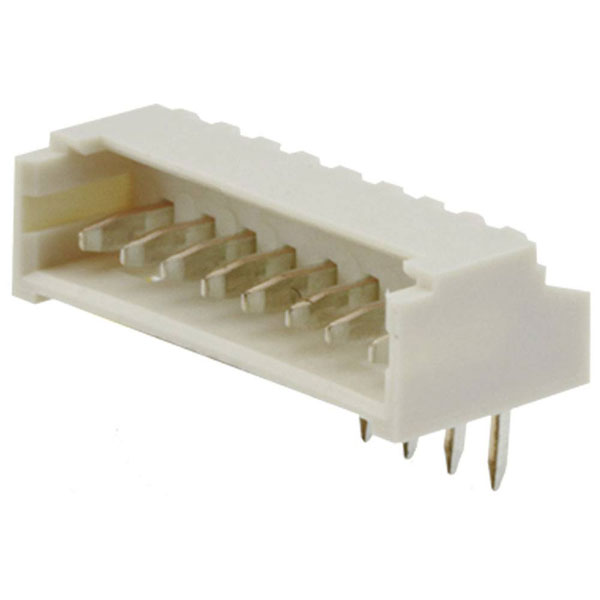

The Molex built-in pin strip (standard), model 530480810, features 8 pins with a contact spacing of 1.25 mm. Manufactured by Molex, this pin strip is suitable for compact electronic applications requiring reliable connections. It is often used in circuit board assemblies to facilitate secure and efficient electrical connections.
| Type |
Built-in pin strip (standard) |
| Number of Positions |
8 |
| Number of Rows |
1 |
| Application |
Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Breakaway |
No |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
8 |
| Circuits maximum |
8 |
| Color resin |
Natural |
| Colour |
Ecru |
| Component type |
PCB Header |
| Connection |
Soldering |
| Connector contact surface |
Tin |
| Connector orientation |
Parallel (to the PCB) |
| Cross Section |
1.25mm |
| Current maximum per contact |
1.0A |
| Delivery unit |
8000 |
| Design registration eligibility |
true |
| Durability mating cycles max |
30 |
| Elv status |
Not Relevant |
| Engineering number |
53048-0810 |
| Engineering Part No |
53048-0810 |
| Engineering Series Name |
WtB Hdr RA Thole |
| Engineering Series No |
53048 |
| First mate last break |
No |
| First published date |
2007-06-08 |
| G a d s l/ i m d s |
Compliant with Exemption 44 |
| Glow wire capable |
No |
| Guide to mating part |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Mated height |
3.50mm |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+85°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
8000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
194.780/mg |
| Nominal Current |
1A |
| Nominal Voltage |
125V |
| Orientation |
Right Angle |
| Packaging Type |
Tray |
| Pc tail length |
2.30mm |
| Pcb locator |
No |
| Pcb retention |
No |
| Pcb thickness recommended |
0.80mm |
| Pitch mating interface |
1.25mm |
| Plating min termination |
0.900µm |
| Polarized to pcb |
No |
| Primary pack qty |
1000 |
| Product name |
PicoBlade |
| Product number display |
530480810 |
| Product number hyphen |
53048-0810 |
| Product number sap |
0530480810 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
53048 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shrouded |
Fully |
| Stackable |
No |
| Taxonomy |
PCB Headers and Receptacles |
| Temperature range operating |
-40° to +85°C |
| Termination interface style |
Through Hole |
| Ul |
E29179 |
| Upc |
800753752214 |
| Voltage maximum |
125V |
