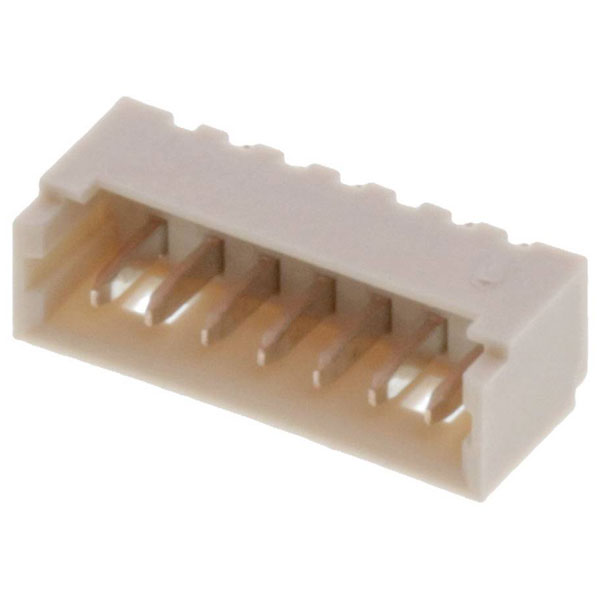

Molex manufactures the built-in pin strip with a standard design featuring seven pins and a contact spacing of 1.25 mm. This component, identified by the part number 530470710, is commonly used in electronics for connecting circuit boards. Its compact size is ideal for applications where space is limited.
| Type |
Built-in pin strip (standard) |
| Number of Positions |
7 |
| Number of Rows |
1 |
| Application |
Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Breakaway |
No |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
7 |
| Circuits maximum |
7 |
| Color resin |
Natural |
| Colour |
Ecru |
| Component type |
PCB Header |
| Connection |
Soldering |
| Connector contact surface |
Tin |
| Connector orientation |
Perpendicular (to the PCB) |
| Contact Material |
Phosphor bronze |
| Cross Section |
1.25mm |
| Current maximum per contact |
1.0A |
| Delivery unit |
8000 |
| Design registration eligibility |
true |
| Durability mating cycles max |
30 |
| ELV status |
Not Relevant |
| Engineering number |
53047-0710 |
| Engineering Part No |
53047-0710 |
| Engineering Series Name |
WtB Hdr Str THole |
| Engineering Series No |
53047 |
| First mate last break |
No |
| First published date |
2007-06-08 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Compliant with Exemption 44 |
| Glow wire capable |
No |
| Guide to mating part |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Mated height |
5.20mm |
| Material metal |
Phosphor Bronze |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+85°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
8000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
146.800/mg |
| Nominal Current |
1A |
| Nominal Voltage |
125V |
| Orientation |
Vertical |
| Packaging Type |
Tray |
| Pc tail length |
2.30mm |
| Pcb locator |
No |
| Pcb retention |
No |
| Pcb thickness recommended |
0.80mm |
| Pitch mating interface |
1.25mm |
| Plating min termination |
0.900µm |
| Polarized to pcb |
No |
| Primary pack qty |
1000 |
| Product name |
PicoBlade |
| Product number display |
530470710 |
| Product number hyphen |
53047-0710 |
| Product number sap |
0530470710 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
53047 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shrouded |
Fully |
| Stackable |
No |
| Taxonomy |
PCB Headers and Receptacles |
| Temperature range operating |
-40° to +85°C |
| Termination interface style |
Through Hole |
| Ul |
E29179 |
| Upc |
800753565838 |
| Voltage maximum |
125V |
