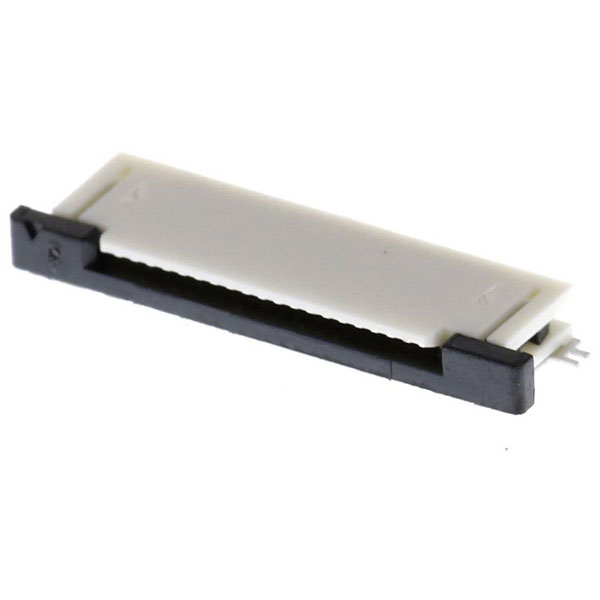

Molex 527452097-1000 FFC/FPC Connector 20 Pins 0.5mm Full Reel 1000pcs

The Molex FFC/FPC connector 527452097-1000 features 20 pins with a contact spacing of 0.5 mm. It is supplied in a tape on full reel of 1000 pieces, making it suitable for high-volume automated assembly processes. Typical applications include consumer electronics, data communication, and industrial equipment.

Type	FFC/FPC connector
Number of Positions	20
Pitch	Parallel (to the PCB)
Board contact surface	Gold
Connection	SMT
Connector contact surface	Gold
Contact Material	Phosphor bronze
CS	0.5mm
Engineering Part No	52745-2097
Engineering Series Name	0.5 FPC Slider TOP
Engineering Series No	52745
Maximum Temperature	+85°C
Min. temperature	-40°C
Misc Attribute	Molex MOL Micro Solutions
Nominal Current	0.5A
Nominal current - rounded value	500mA
Nominal Voltage	50V
Number of Rows	1
Packaging Type	Tape on Full reel
