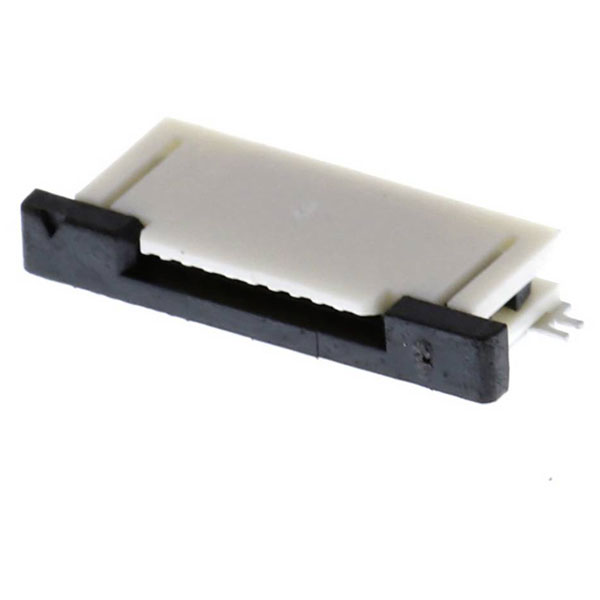

Molex 527451097-1000 FFC/FPC Connector 10 Pins 0.5mm Pitch 1000 Pcs

The Molex FFC/FPC connector, part number 527451097-1000, features 10 pins with a contact spacing of 0.5 mm, available in a full reel of 1000 pieces. It is commonly used in compact electronic devices for board-to-board interconnections. Typical applications include mobile phones, cameras, and other consumer electronics where space is at a premium.

Type	FFC/FPC connector
Number of Positions	10
Pitch	Parallel (to the PCB)
Board contact surface	Gold
Connection	SMT
Connector contact surface	Gold
Contact Material	Phosphor bronze
CS	0.5mm
Engineering Part No	52745-1097
Engineering Series Name	0.5 FPC Slider TOP
Engineering Series No	52745
Maximum Temperature	+85°C
Min. temperature	-40°C
Misc Attribute	Molex MOL Micro Solutions
Nominal Current	0.5A
Nominal current - rounded value	500mA
Nominal Voltage	50V
Number of Rows	1
Packaging Type	Tape on Full reel
