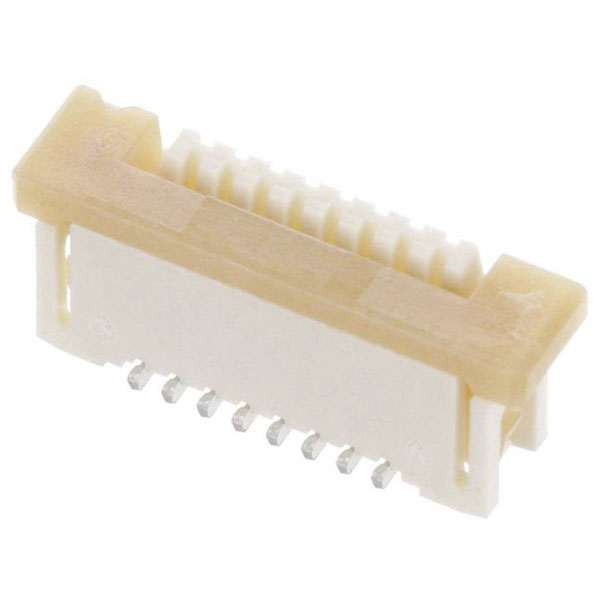

Molex 526100872-1000 FFC/FPC Connector 8 Pins 1mm Pitch Full Reel

The Molex FFC/FPC connector (part number 526100872-1000) is designed with 8 pins and a contact spacing of 1 mm. It is supplied on a full reel with 1000 pieces, ensuring efficient handling for mass production. This connector is typically used in electronic applications where compact, flexible connections are required, such as in consumer electronics or automotive systems.

Type	FFC/FPC connector
Number of Positions	8
Pitch	Perpendicular (to the PCB)
Board contact surface	Tin
Case Material	Nylon (NL)
Connection	SMT
Connector contact surface	Gold
Contact Material	Phosphor bronze
CS	1mm
Engineering Part No	52610-0872
Engineering Series Name	1.0 FPC Slider VTCL
Engineering Series No	52610
Factory colour	Ecru
Maximum Temperature	+85°C
Min. temperature	-40°C
Misc Attribute	Molex MOL Micro Solutions
Nominal Current	1A
Nominal current - rounded value	1A
Nominal Voltage	125V
Number of Rows	1
Packaging Type	Tape on Full reel
