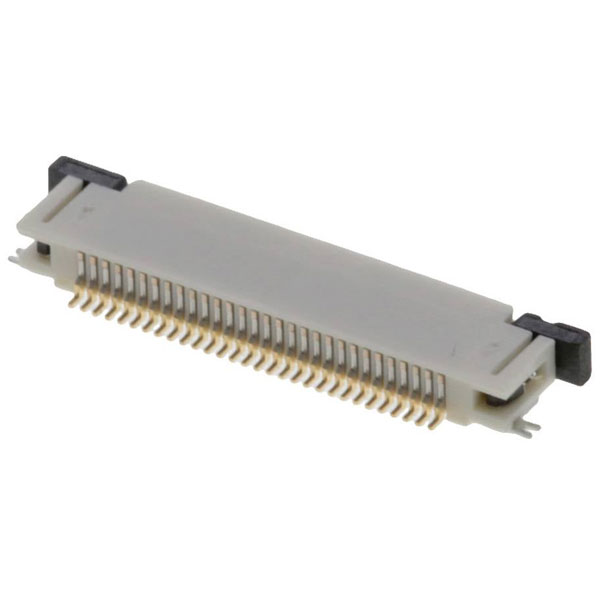

The Molex 524353071 FFC/FPC connector features 30 pins with a contact spacing of 0.5 mm, making it suitable for compact electronic applications. Manufactured by Molex, this connector is available on a full tape reel, facilitating automated assembly processes. Ideal for consumer electronics and industrial equipment, it ensures reliable low-profile PCB connections.
| Type |
FFC/FPC connector |
| Number of Positions |
30 |
| Pitch |
Parallel (to the PCB) |
| Actuator Type |
Slider |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Gold |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
30 |
| Connection |
SMT |
| Connector contact surface |
Gold |
| Contact Material |
Phosphor bronze |
| Contact position |
Top |
| CS |
0.5mm |
| Current maximum per contact |
0.5A |
| Delivery unit |
3000 |
| Design registration eligibility |
true |
| Durability mating cycles max |
20 |
| Elv status |
Not Relevant |
| Engineering number |
52435-3071 |
| First published date |
2008-09-04 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 33 |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Mated height |
2.00mm |
| Material metal |
Phosphor Bronze |
| Material plating mating |
Gold |
| Material plating termination |
Gold |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+85°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
3000 |
| Misc Attribute |
MOL Micro Solutions |
| Net weight |
391.930/mg |
| Nominal Current |
0.5A |
| Nominal current - rounded value |
500mA |
| Nominal Voltage |
50V |
| Number of Rows |
1 |
| Orientation |
Right Angle |
| Packaging Type |
Tape on Full reel |
| Pcb locator |
No |
| Pcb mounting |
Surface Mount |
| Pcb retention |
No |
| Pitch mating interface |
0.50mm |
| Polarized to pcb |
Yes |
| Primary pack qty |
1000 |
| Product name |
Easy-On |
| Product number display |
524353071 |
| Product number hyphen |
52435-3071 |
| Product number sap |
0524353071 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
52435 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Series name |
Slider |
| Stackable |
No |
| Taxonomy |
FFC / FPC Connectors |
| Temperature range operating |
-40° to +85°C |
| Ul |
E29179 |
| Upc |
822348753369 |
| Voltage maximum |
50V |
| Wire cable type |
FFC/FPC |
