Molex 50842040 MLX Socket Housing 4 Pins 6.35mm Pitch

Molex
Order Code:

05-3947

Brand: Molex MPN: 50842040 EAN-13: 2050007118534
Qty Unit Price (Ex VAT)
10+ £0.570
200+ £0.475
750+ £0.431
3000+ £0.424
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
168 in stock, despatched in 4 working days

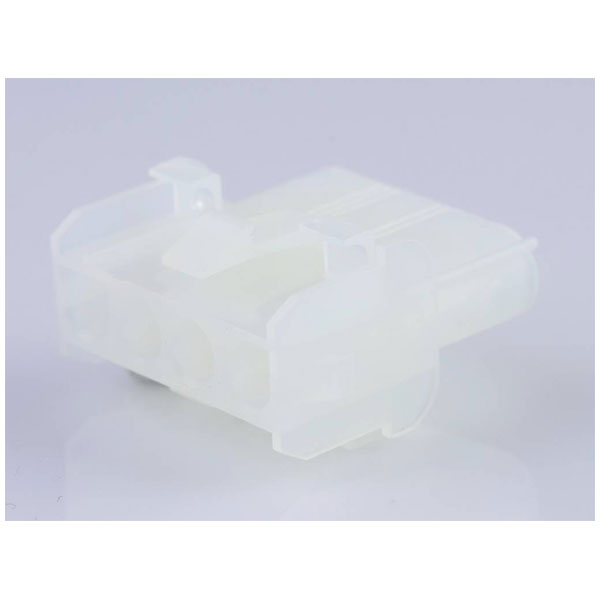

Molex socket housing cable 50842040 features a total of four pins with a contact spacing of 6.35 mm. This component is ideal for secure connectivity in electronic applications. Frequently used in wire-to-wire or wire-to-board connections, it ensures reliable signal transmission.
Type Socket housing cable
Pitch 6.35mm
Number of Ways 4
Number of Rows 1
Application Power, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits detail 4
Circuits maximum 4
Color resin Natural
Colour Ecru
Comments Glow Wire Equivalent Part Number 366440004; Maximum current per contact 20A if used with 36663 and 36664 terminal
Connector Type Socket
CS 6.35mm
Csa LR19980
Delivery unit 1200
Design registration eligibility true
Elv status Not Relevant
Engineering number 42022-4A
Engineering Part No 42022-4A
Engineering Series Name MLX CAP HSG
Engineering Series No 42022
First published date 2007-05-16
G a d s l/ i m d s Not Relevant
Gender Receptacle
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Finished Goods
Max. temperature +105°C
Min. temperature -55°C
Minimum line quantity 8400
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 3.955/g
Nominal Current 20A
Nominal current - rounded value 20A
Packaging Type Carton
Panel mount Yes
Polarized to mating part Yes
Primary pack qty 1200
Product name MLX
Product number display 50842040
Product number hyphen 50-84-2040
Product number sap 0050842040
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 42022
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -55° to +105°C
Ul E29179
Upc 800753754690
