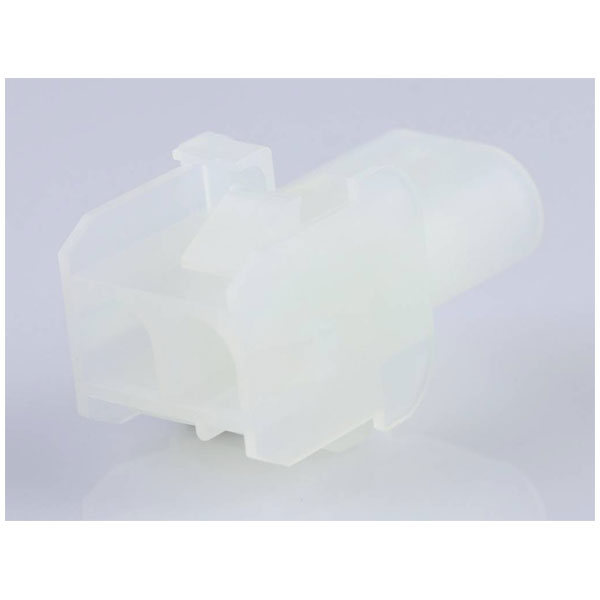

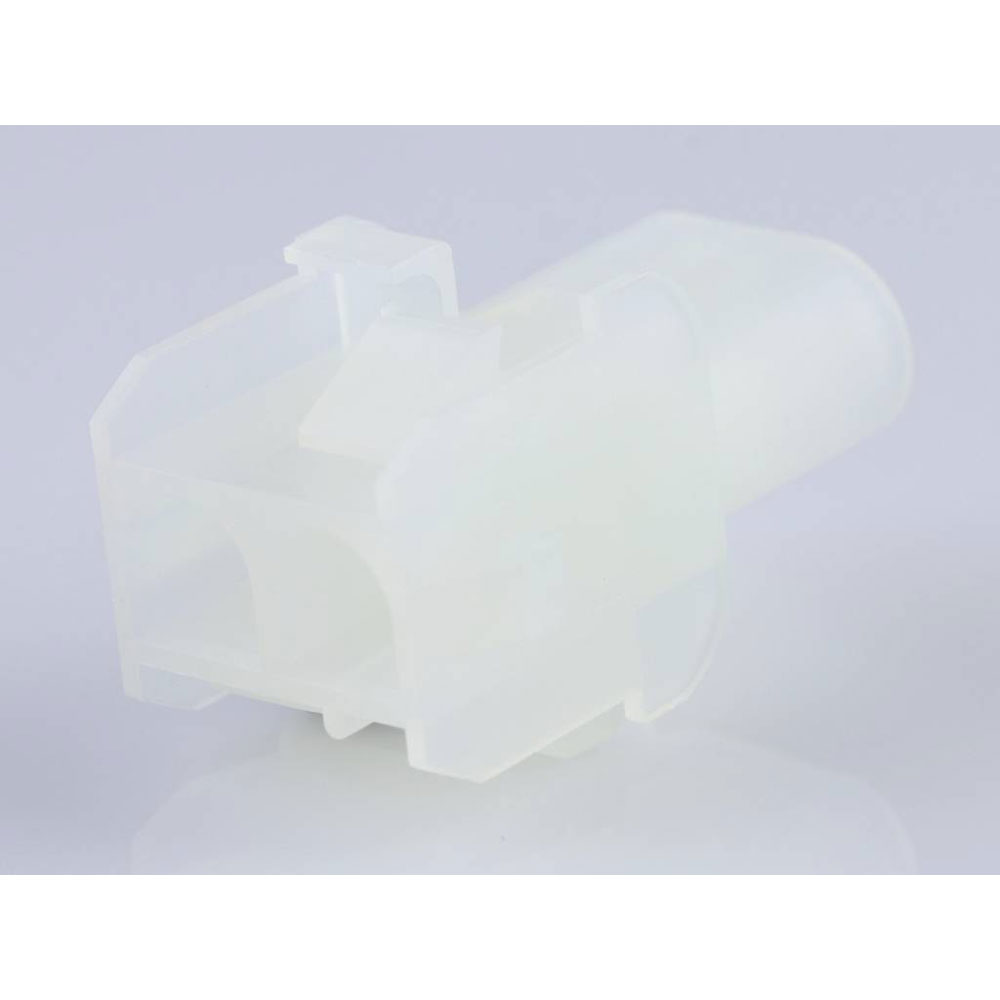

The Molex Socket Housing Cable, part number 50842022, is a two-pin component with a contact spacing of 6.35 mm. Manufactured by Molex, this socket housing is ideal for secure cable connections in electronic and electrical applications. It is typically used in automotive, industrial, and consumer electronics for reliable power or data connections.
| Type |
Socket housing cable |
| Pitch |
6.35mm |
| Number of Ways |
2 |
| Number of Rows |
1 |
| Application |
Power, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits detail |
2 |
| Circuits maximum |
2 |
| Color resin |
Natural |
| Colour |
Ecru |
| Comments |
Glow Wire Equivalent Part Number 366440002; Maximum current per contact 20A if used with 36663 and 36664 terminal |
| Connector Type |
Socket |
| CS |
6.35mm |
| Csa |
LR19980 |
| Delivery unit |
2000 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering number |
42022-2C |
| Engineering Part No |
42022-2C |
| Engineering Series Name |
MLX CAP HSG |
| Engineering Series No |
42022 |
| First published date |
2007-05-16 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Receptacle |
| Glow wire capable |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+105°C |
| Min. temperature |
-55°C |
| Minimum line quantity |
12000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
2.346/g |
| Nominal Current |
20A |
| Nominal current - rounded value |
20A |
| Packaging Type |
Carton |
| Panel mount |
Yes |
| Polarized to mating part |
Yes |
| Primary pack qty |
2000 |
| Product name |
MLX |
| Product number display |
50842022 |
| Product number hyphen |
50-84-2022 |
| Product number sap |
0050842022 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
42022 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-55° to +105°C |
| Ul |
E29179 |
| Upc |
800754386364 |
