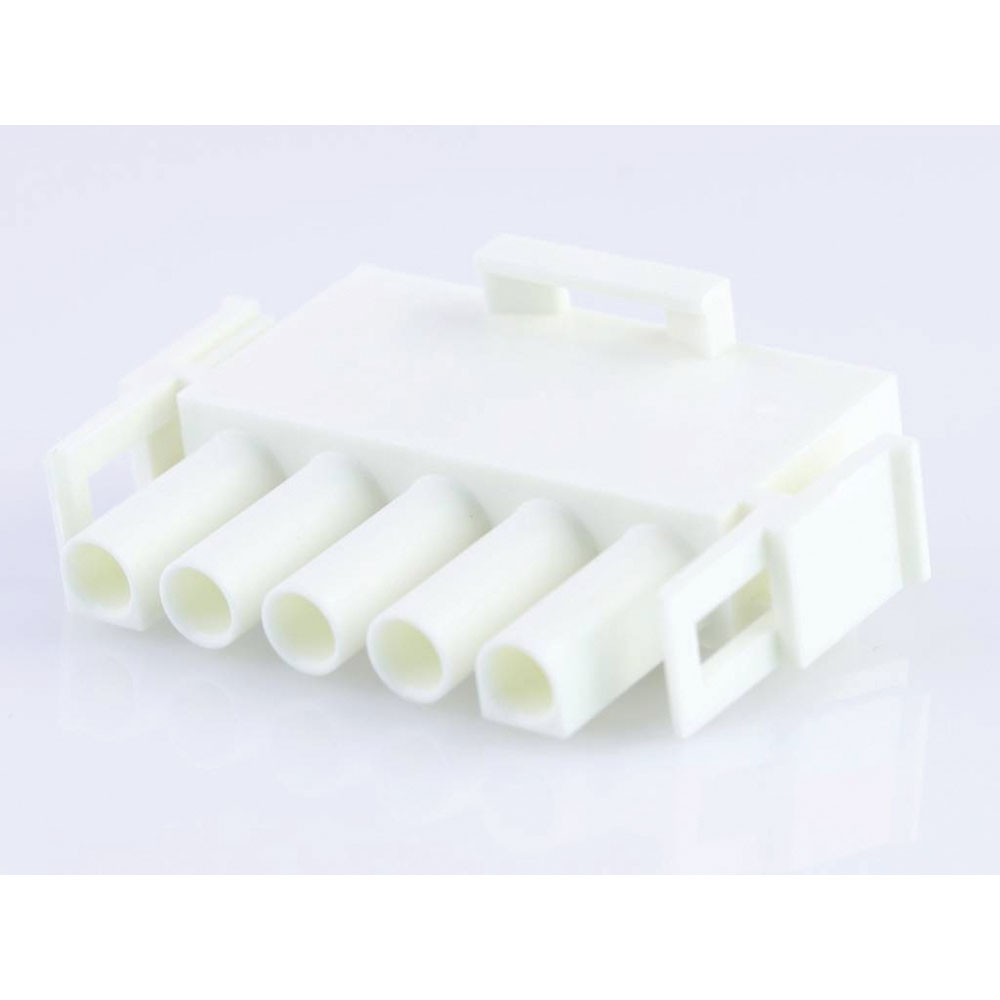

Molex 50841150 MLX Housing Plug 15 Pin 6.35mm Pitch Natural 2.13mm Dia.

Image Representative of Range

Molex 50841150 MLX Housing Plug 15 Pin 6.35mm Pitch Natural 2.13mm Dia.

Molex
Order Code:

05-3942

Brand: Molex MPN: 50841150 EAN-13: 2050007118473
Qty Unit Price (Ex VAT)
10+ £0.715
200+ £0.604
750+ £0.599
3000+ £0.594
6000+ £0.589
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
10 in stock, despatched in 4 working days

The Molex socket housing cable 50841150 is designed with a total of 15 pins and a contact spacing of 6.35 mm. This part is suitable for secure electrical connections and is typically used in industrial or electronic applications. Manufactured by Molex, it is supplied as a single piece in a bag.
Type Socket housing cable
Pitch 6.35mm
Number of Ways 15
Number of Rows 5
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits detail 15
Circuits maximum 15
Color resin Natural
Colour Ecru
Comments Glow Wire Equivalent Part Number 366430008; Maximum current per contact 20A if used with 36663 and 36664 terminal
Connector Type Plug
CS 6.35mm
Csa LR19980
Delivery unit 400
Design registration eligibility true
Elv status Not Relevant
Engineering number 42021-15A
Engineering Part No 42021-15A
Engineering Series Name MLX PLUG HSG
Engineering Series No 42021
First published date 2007-05-16
G a d s l/ i m d s Not Relevant
Gender Plug
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Finished Goods
Max. temperature +105°C
Min. temperature -55°C
Minimum line quantity 2800
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 8.113/g
Nominal current - rounded value NaNA
Packaging Type Bag
Panel mount No
Polarized to mating part Yes
Primary pack qty 400
Product name MLX
Product number display 50841150
Product number hyphen 50-84-1150
Product number sap 0050841150
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 42021
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -55° to +105°C
Ul E29179
Upc 800753755291
