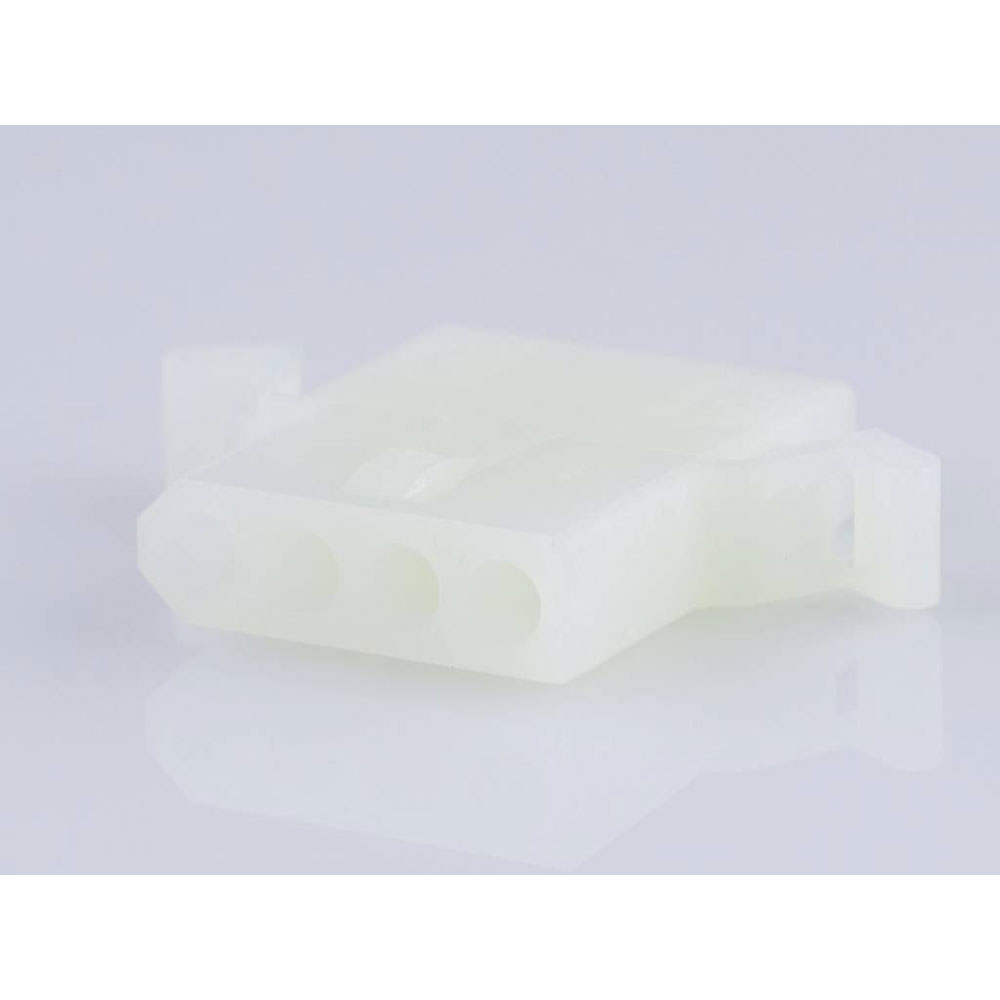

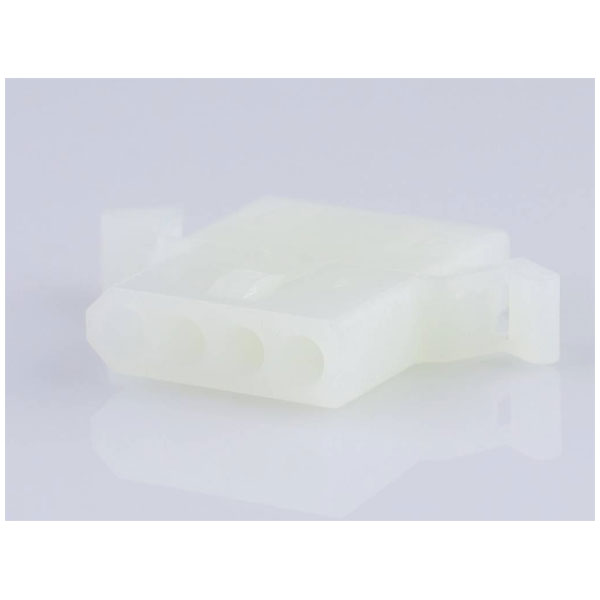

Molex 50291758 Standard Socket Housing 4 Pins 3.68mm Spacing Natural

The Molex socket housing cable, model 50291758, features four pins with a contact spacing of 3.68 mm. This component is ideal for connecting wires in electronic and electrical applications. It is commonly used in consumer electronics and automotive wiring harnesses.

Type	Socket housing cable
Pitch	3.68mm
Number of Ways	4
Number of Rows	1
Application	Power, Wire-to-Wire
Base unit of measure	PC
Base unit of measure desc	piece
Case Material	Nylon (NL)
China ro h s status	Compliant per SJ/T 11365-2006
Circuits detail	1x4
Circuits maximum	4
Color resin	Natural
Colour	Ecru
Comments	Polarized to Mating Part
Connector Type	Socket
CS	3.68mm
Csa	LR19980
Delivery unit	7000
Design registration eligibility	false
ELV status	Not Relevant
Engineering number	1625-4R2
Engineering Part No	1625-4R2
Engineering Series Name	.062 CONNECTOR HSG.
Engineering Series No	01625
First published date	2007-10-16
Flammability	94V-2
G a d s l/ i m d s	Not Relevant
Gender	Receptacle
Glow wire capable	No
H f l h status	Low-Halogen per IEC 61249-2-21
Keying to mating part	No
Lock to mating part	Yes
Material resin	Nylon
Material type	Finished Goods
Max. temperature	+105°C
Min. temperature	-40°C
Minimum line quantity	14000
Misc Attribute	Molex MOL Power & Signal Sol.
Net weight	1.303/g
Nominal Current	5A
Nominal current - rounded value	5A
Packaging Type	Bag
Panel mount	Yes
Pitch termination interface	3.68mm
Polarized to mating part	Yes
Primary pack qty	7000
Product name	Standard .062"
Product number display	50291758
Product number hyphen	50-29-1758
Product number sap	0050291758
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	1625
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Stackable	No
Taxonomy	Connector Housings
Temperature range operating	-40° to +105°C
Ul	E29179
Upc	822350404907
