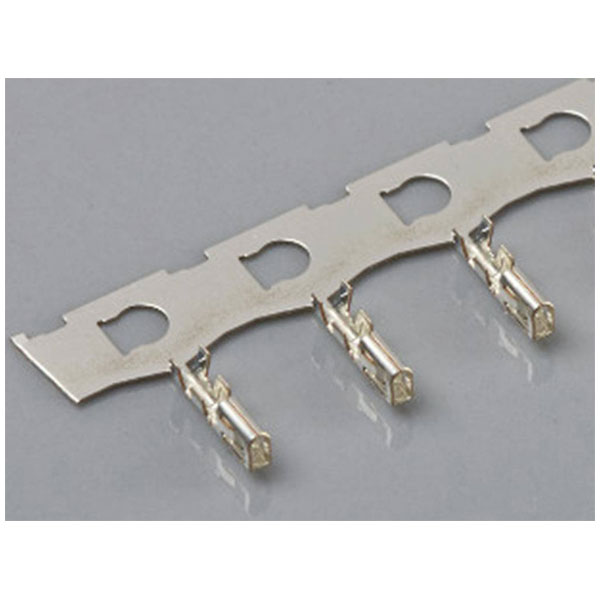

Molex 5013340100 Pico-clasp Female Crimp Terminal 1.00mm Pitch Tin

Molex's Pico Class 1.0 5013340100 is a crimp contact designed for reliable electrical connections. This component is commonly used in electronics and automotive applications for secure and efficient signal transmission. Its compact design allows for easy integration into various systems.

Type	Crimp contact
Pin or Socket	Female
Wire Gauge	32 - 28
Application	Signal, Wire-to-Board
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Compliant per SJ/T 11365-2006
Connector Type	Socket
Contact Finish	Phosphor bronze tin plated
Current maximum per contact	2.0A
Delivery unit	100000
Design registration eligibility	true
Durability mating cycles max	30
ELV status	Not Relevant
Engineering number	NT501-6746
Engineering Part No	NT501-6746
Engineering Series Name	SGL Crimp Term
Engineering Series No	501334
First published date	2008-08-28
G a d s l/ i m d s	Compliant with Exemption 44
Gender	Female
H f l h status	Low-Halogen per IEC 61249-2-21
Material metal	Phosphor Bronze
Material plating mating	Tin
Material plating termination	Tin
Material type	Finished Goods
Minimum line quantity	100000
Misc Attribute	Molex MOL Power & Signal Sol.
Net weight	8.600/mg
Packaging Type	Bag
Primary pack qty	1000
Product name	Pico-Clasp
Product number display	5013340100
Product number hyphen	501334-0100
Product number sap	5013340100
Rated voltage	100V
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	501334
Ro h s status	Compliant per EU 2015/863
Sampleable	False
Taxonomy	Crimp Terminals
Termination interface style	Crimp or Compression
Test current	2A
Upc	822348531097
Voltage maximum	100V AC (RMS)/DC
Wire insulation diameter	0.80mm max.
Wire size awg	28, 30, 32
