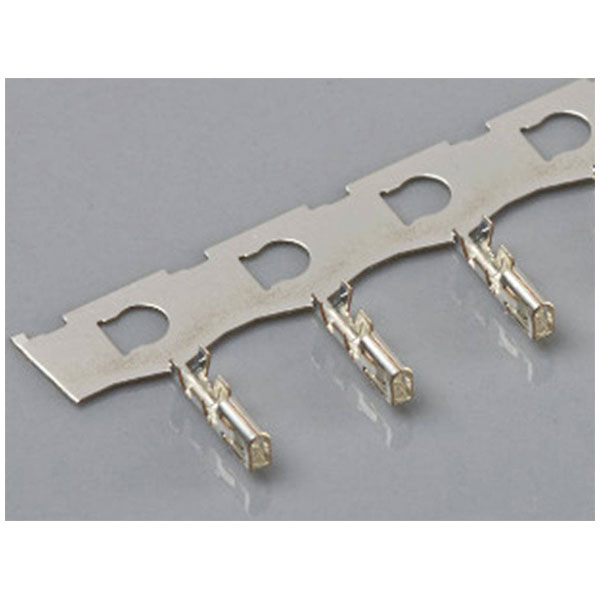

Molex 5013340000 Pico-clasp Female Crimp Terminal Tin 1.00mm Pitch

The Molex 5013340000 is a crimp contact designed for reliable electrical connections. Manufactured by Molex, this component is typically used in intricate electronics and wiring applications. Its high-quality design ensures durability in both consumer and industrial settings.

Type	Crimp contact
Pin or Socket	Female
Wire Gauge	32 - 28
Application	Signal, Wire-to-Board
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Compliant per SJ/T 11365-2006
Connector Type	Socket
Contact Finish	Phosphor bronze tin plated
Current maximum per contact	2.0A
Delivery unit	100000
Design registration eligibility	true
Durability mating cycles max	30
ELV status	Compliant per 2000/53/EC
Engineering number	501334-0000
First published date	2007-05-16
G a d s l/ i m d s	Compliant with Exemption 44
Gender	Female
H f l h status	Low-Halogen per IEC 61249-2-21
Material metal	Phosphor Bronze
Material plating mating	Tin
Material plating termination	Tin
Material type	Finished Goods
Minimum line quantity	200000
Misc Attribute	MOL Power & Signal Sol.
Net weight	17.000/mg
Packaging Type	Tape on Full reel
Primary pack qty	25000
Product name	Pico-Clasp
Product number display	5013340000
Product number hyphen	501334-0000
Product number sap	5013340000
Rated voltage	100V
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	501334
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Taxonomy	Crimp Terminals
Termination interface style	Crimp or Compression
Test current	2A
Upc	822348531103
Voltage maximum	100V AC (RMS)/DC
Wire insulation diameter	0.80mm max.
Wire size awg	28, 30, 32
