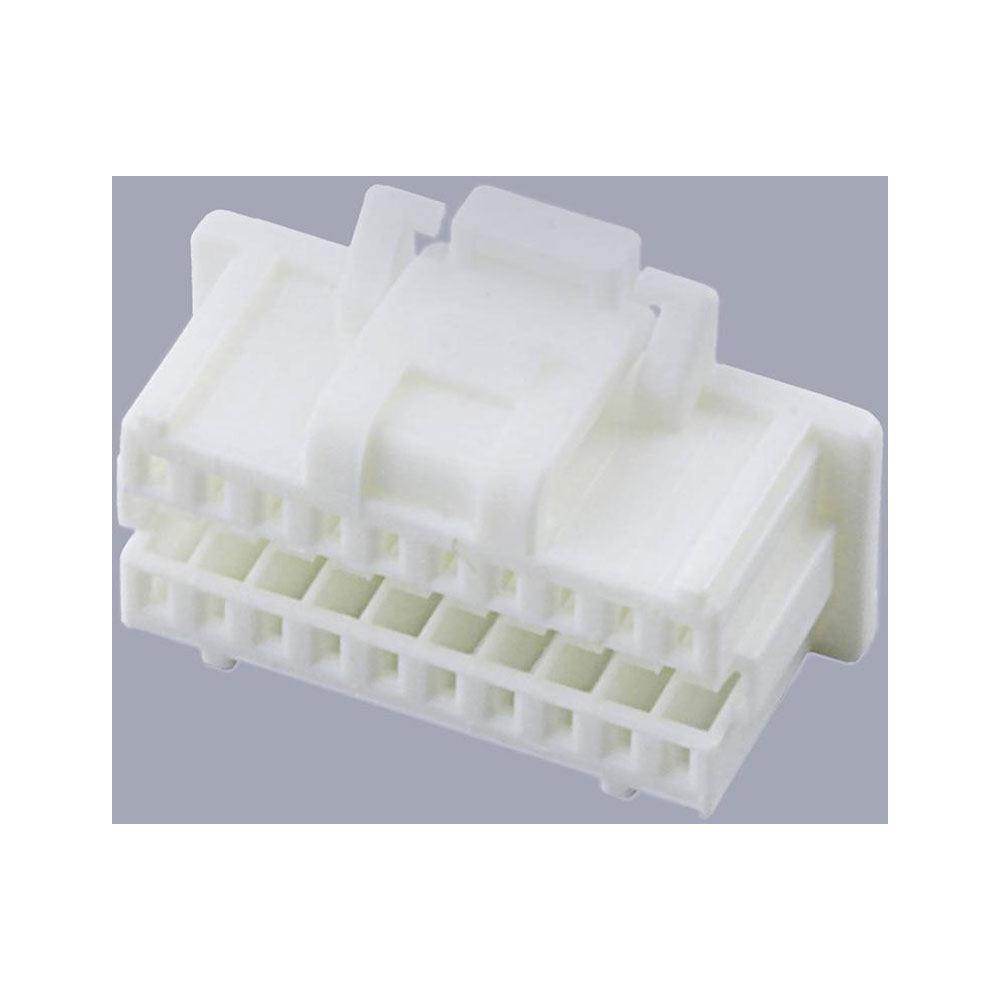

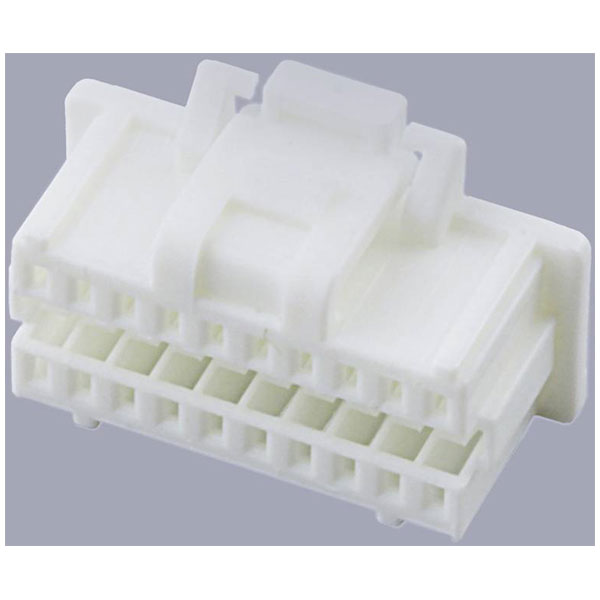

The Molex socket housing cable, part number 5011892010, features 20 pins with a 1 mm contact spacing. This component, manufactured by Molex, is designed for secure and reliable cable connections. It is commonly used in electronic applications requiring compact and precise connector arrangements.
| Type |
Socket housing cable |
| Pitch |
1.00mm |
| Number of Ways |
20 |
| Number of Rows |
2 |
| Application |
Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
20 |
| Color resin |
White |
| Colour |
White |
| Connector System |
wire-to-board |
| Connector Type |
Socket |
| CS |
1mm |
| Delivery unit |
20000 |
| Design registration eligibility |
true |
| Elv status |
Compliant per 2000/53/EC |
| Engineering number |
501189-2010 |
| Engineering Part No |
501189-2010 |
| Engineering Series Name |
Dual Rcpt Hsg |
| Engineering Series No |
501189 |
| First published date |
2007-09-19 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Receptacle |
| Glow wire capable |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
Yes |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
20000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
0.150/g |
| Packaging Type |
Bag |
| Panel mount |
No |
| Pitch termination interface |
1.00mm |
| Polarized to mating part |
Yes |
| Primary pack qty |
500 |
| Product name |
Pico-Clasp |
| Product number display |
5011892010 |
| Product number hyphen |
501189-2010 |
| Product number sap |
5011892010 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
501189 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +105°C |
| Ul |
E29179 |
| Upc |
822348789771 |
