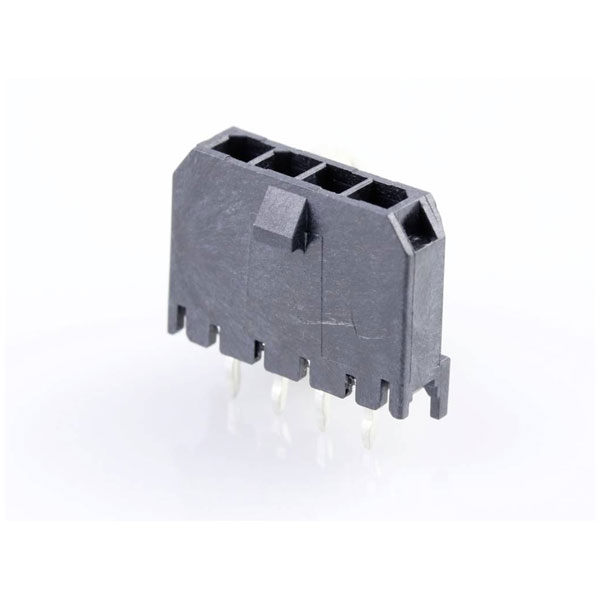

Molex 436500415 Micro-fit Pin Strip 4 Pins 3mm Pitch PCB Peg Black

Molex manufactures the Built-in pin strip with a total of 4 pins and a contact spacing of 3 mm. This component is supplied in a tray with the part number 436500415. It is typically used in electronic assemblies requiring reliable multi-pin connections.

Pitch	3mm
No. of Rows	1
No. of Ways	4
Application	Power, Wire-to-Board
Base unit of measure	PC
Base unit of measure desc	piece
Board contact surface	Tin
Breakaway	No
Case Material	High temperature resistant thermoplastic
China ro h s status	Compliant per SJ/T 11365-2006
Circuits loaded	4
Circuits maximum	4
Coating thickness (PCB side)	2.54µm
Color resin	Black
Comments	High Temperature, Square Pin, Offset Through Hole Mounting, Solder Type; This Molex product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customers evaluation of suitability, that higher performance is required, please contact Molex for possible product options.
Component type	PCB Header
Connection	Print
Connector coating thickness	2.54µm
Connector contact surface	Tin
Connector orientation	Perpendicular (to the PCB)
Contact Finish	Brass
CS	3mm
Csa	LR19980
Current maximum per contact	8.5A
Delivery unit	2040
Design registration eligibility	true
Durability mating cycles max	30
Duration at max process temperature seconds	30
ELV status	Not Relevant
Engineering number	43650-0415
Engineering Part No	43650-0415
Engineering Series Name	MICROFIT SR HDR
Engineering Series No	43650
Factory colour	Black
First mate last break	No
First published date	2007-06-08
G a d s l/ i m d s	Compliant with Exemption 44; 33
Glow wire capable	Yes
H f l h status	Low-Halogen per IEC 61249-2-21
Lead free process capability	SMC&WAVE
Mated height	17.27mm
Material metal	Brass
Material plating mating	Matte Tin
Material plating termination	Matte Tin
Material resin	High Temperature Thermoplastic
Material type	Finished Goods
Max cycles at max process temperature	3
Max. temperature	+105°C
Min. temperature	-40°C
Minimum line quantity	4080
Misc Attribute	Molex MOL Power & Signal Sol.
Net weight	0.736/g
Nominal Current	8.5A
Nominal current - rounded value	8.5A
Nominal Voltage	600V
Number of Rows	1
Orientation	Vertical
Packaging Type	Tray
Pcb locator	Yes
Pcb retention	Yes
Pcb thickness recommended	1.60mm
Pitch mating interface	3.00mm
Plating min mating	1.524µm
Plating min termination	1.524µm
Polarized to pcb	Yes
Primary pack qty	120
Process temperature max c	260
Product name	Micro-Fit 3.0
Product number display	436500415
Product number hyphen	43650-0415
Product number sap	0436500415
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	43650
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Shrouded	Fully
Stackable	No
Taxonomy	PCB Headers and Receptacles
Temperature range operating	-40° to +105°C
Termination interface style	Through Hole - Kinked Pin
Type	Built-in pin strip (standard)
Ul	E29179
Upc	800754366403
Voltage maximum	600V
