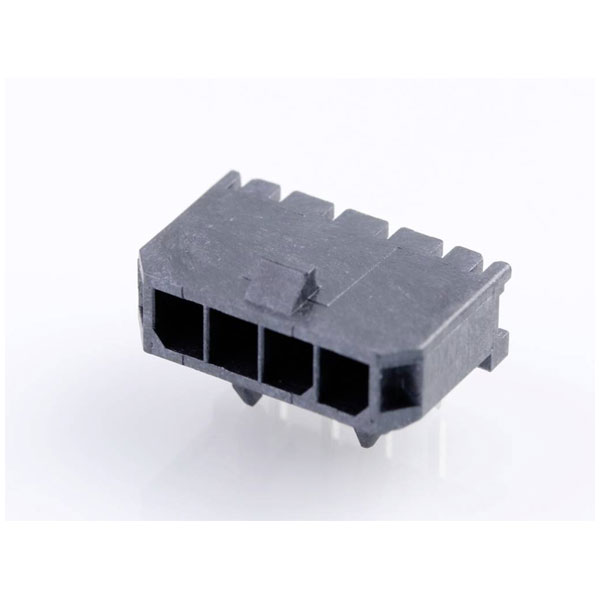

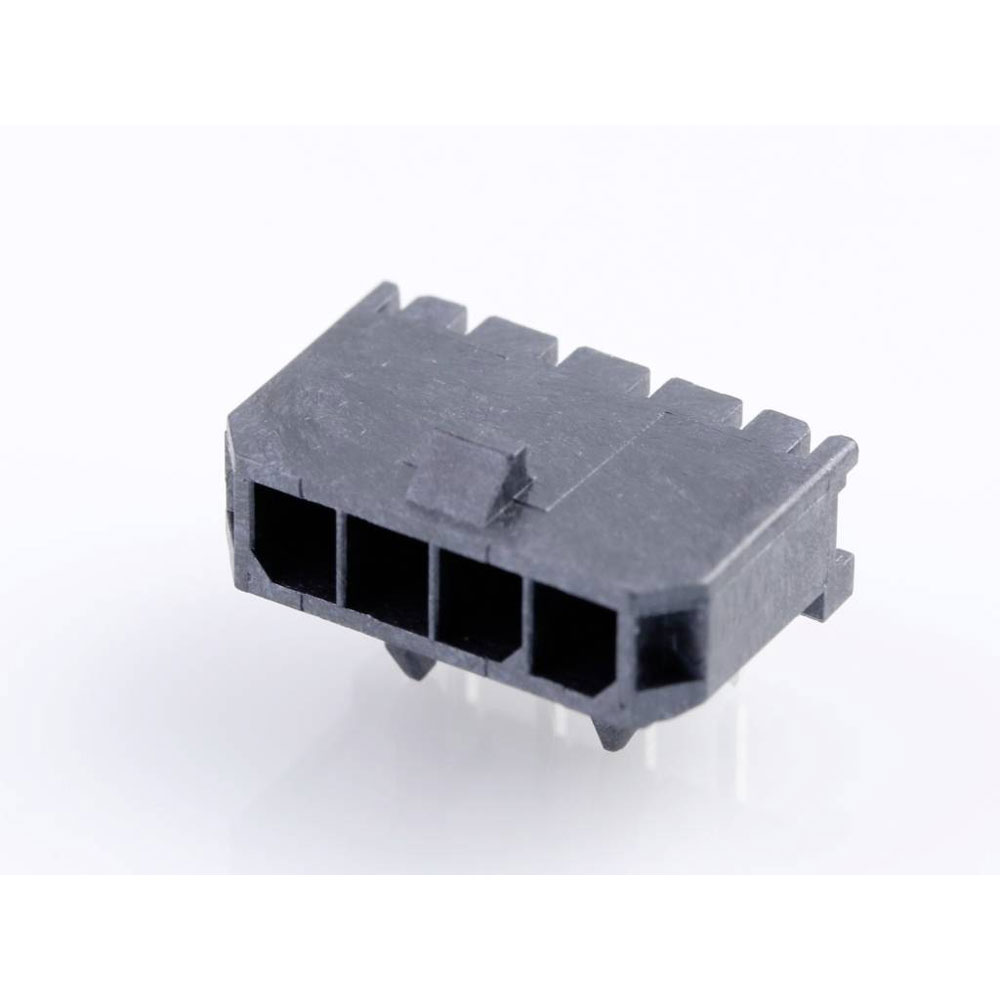

Molex 436500400 Micro-fit 3.0 4-pin 3mm Pitch PCB Header Right-angle

Molex
Order Code:

05-3714

Brand: Molex MPN: 436500400 EAN-13: 2050007111290
Qty Unit Price (Ex VAT)
5+ £1.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
715 available to back orderBack-order availability date - 09/01/2026

Manufactured by Molex, this built-in pin strip features four pins with a contact spacing of 3 mm. Its standard design makes it ideal for compact electronic applications requiring reliable connections. Typically used in circuit board interfacing, it is available as a single unit in a tray.
No. of Rows 1
No. of Ways 4
Contact Finish Brass
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Coating thickness (PCB side) 2.54µm
Connection Soldering
Connector coating thickness 2.54µm
Connector contact surface Tin
Connector orientation Parallel (to the PCB)
CS 3mm
Engineering Part No 43650-0400
Engineering Series Name MICROFIT SR HDR
Engineering Series No 43650
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Packaging Type Tray
Type Built-in pin strip (standard)
