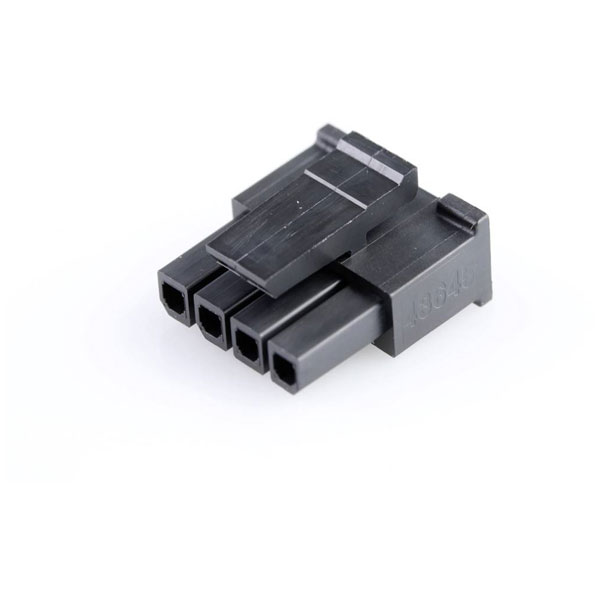

Molex 436450400 Micro-fit 3.0 Receptacle 4 Pins 3mm Spacing Black

Molex
Order Code:

05-3699

Brand: Molex MPN: 436450400 EAN-13: 2050007110965
Qty Unit Price (Ex VAT)
20+ £0.299
125+ £0.288
500+ £0.276
2500+ £0.265
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,052 in stock, despatched in 4 working days

The Molex socket housing cable (436450400) is a robust component designed by Molex, featuring a total of 4 pins with a contact spacing of 3 mm. It is ideally used in electrical and electronic applications, ensuring secure connections and organised cable management. This part is suitable for various industries where reliable connectivity is essential, supplied in individual bags for convenience.
Type Socket housing cable
Pitch 3.00mm
Number of Ways 4
Number of Rows 1
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Polyester
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 4
Color resin Black
Colour Black
Connector Type Socket
CS 3mm
Csa LR19980
Delivery unit 3000
Design registration eligibility true
ELV status Compliant per 2000/53/EC
Engineering number 43645-0400
Engineering Part No 43645-0400
Engineering Series Name MICROFIT SR RECEPT
Engineering Series No 43645
First published date 2007-05-16
Flammability 94V-0
G a d s l/ i m d s Not Relevant
Gender Receptacle
Glow wire capable No
H f l h status Not Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Polyester
Material type Finished Goods
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 9000
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 0.558/g
Packaging Type Bag
Panel mount No
Polarized to mating part Yes
Primary pack qty 3000
Product name Micro-Fit 3.0
Product number display 436450400
Product number hyphen 43645-0400
Product number sap 0436450400
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 43645
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800754366199
