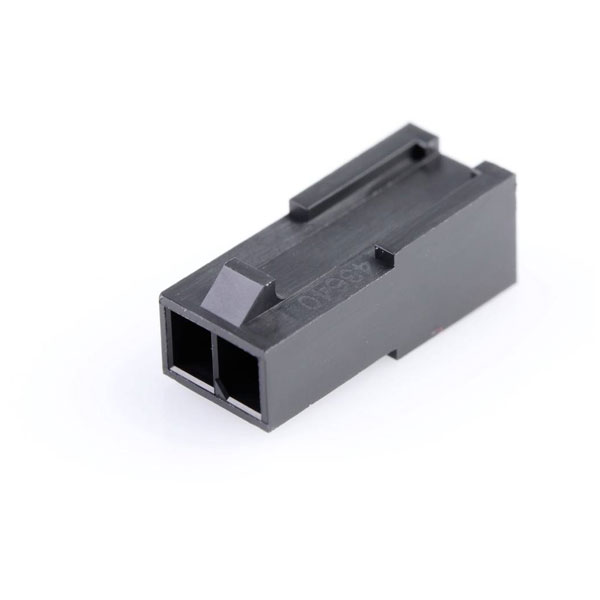

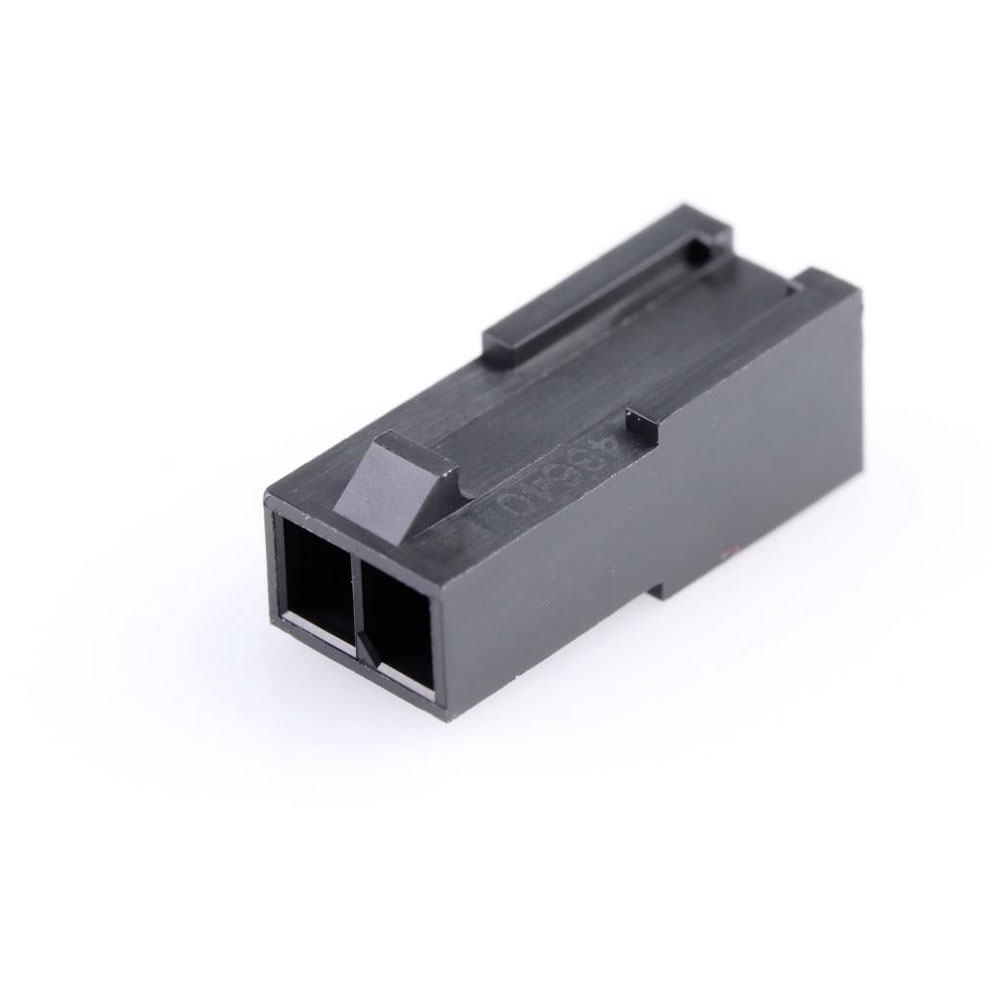

The Molex Socket housing cable is a 2-pin connector with a contact spacing of 3 mm, designed for reliable electrical connections. Manufactured by Molex, this component is well-suited for use in electronic and electrical devices where secure cable housing is required. It is typically used in consumer electronics, automotive applications, and industrial equipment for efficient signal or power transmission.
| Type |
Socket housing cable |
| Pitch |
3.00mmmm |
| Number of Ways |
2 |
| Number of Rows |
1 |
| Application |
Power, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
2 |
| Color resin |
Black |
| Colour |
Black |
| Connector Type |
Plug |
| CS |
3mm |
| Csa |
LR19980 |
| Delivery unit |
7500 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering number |
43640-0201 |
| Engineering Part No |
43640-0201 |
| Engineering Series Name |
MICROFIT 3.0 PLUG W/ |
| Engineering Series No |
43640 |
| First published date |
2007-05-16 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Plug |
| Glow wire capable |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
15000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
0.333/g |
| Packaging Type |
Bag |
| Panel mount |
No |
| Polarized to mating part |
Yes |
| Primary pack qty |
7500 |
| Product name |
Micro-Fit 3.0 |
| Product number display |
436400201 |
| Product number hyphen |
43640-0201 |
| Product number sap |
0436400201 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
43640 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +105°C |
| Ul |
E29179 |
| Upc |
800754366120 |
