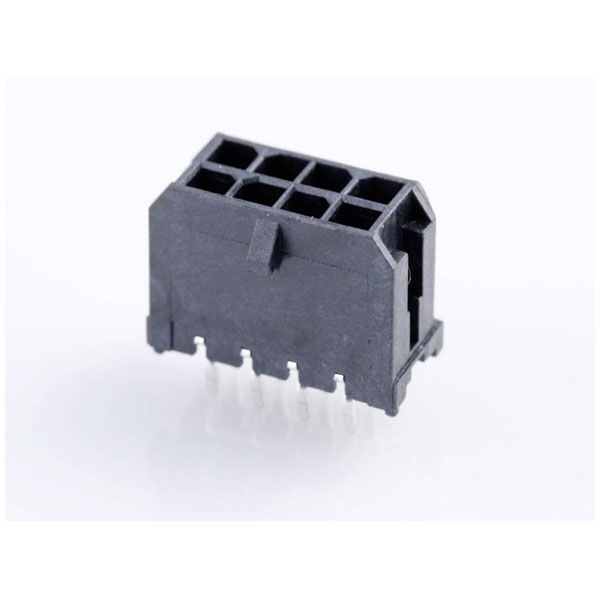

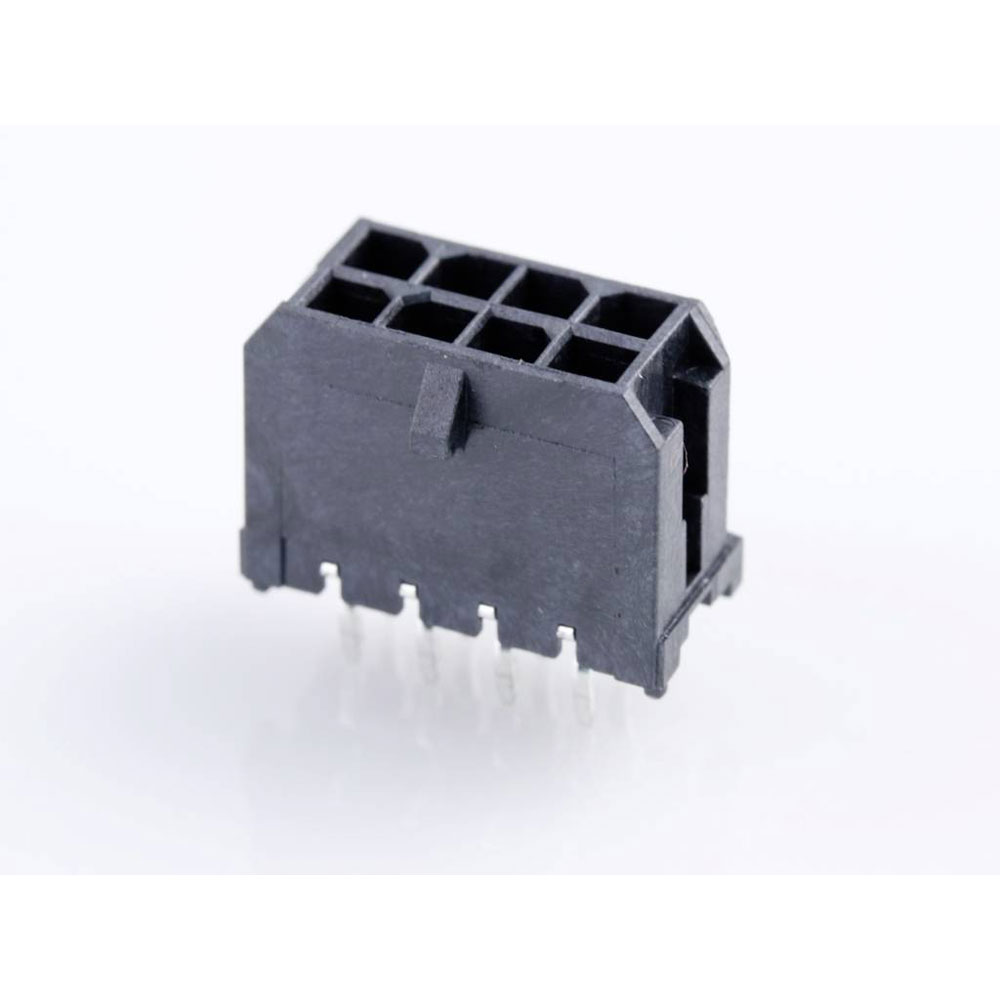

Molex 430450812 Micro-fit 3.0 3mm 8-pin Header Dual Row Black

Molex
Order Code:

05-3669

Brand: Molex MPN: 430450812 EAN-13: 2050007112594
Qty Unit Price (Ex VAT)
5+ £1.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
458 in stock, despatched in 4 working days

Molex manufactures the 430450812 built-in pin strip, featuring 8 pins with a contact spacing of 3 mm. This standard pin strip is typically used in electronic circuit board connections and is supplied in a tray. It is ideal for applications in consumer electronics and industrial equipment.
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Connection Print
Connector coating thickness 0.254µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
CS 3mm
Engineering Part No 43045-0812
Engineering Series Name MICRO-FIT HDR ASSY
Engineering Series No 43045
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Number of Rows 2
Packaging Type Tray
Total number of pins 8
Type Built-in pin strip (standard)
