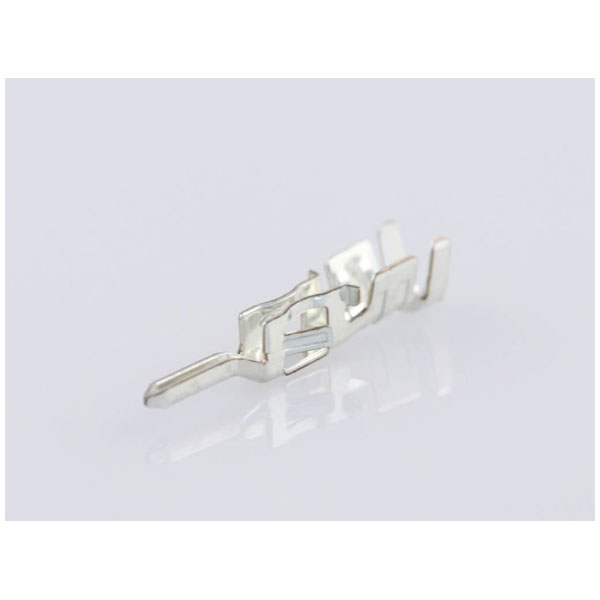

Molex 430310001 Micro-fit 3.0 Crimp Terminal Male Tin Plated 20-24 AWG

The Molex crimp contact 430310001 is ideal for creating secure electrical connections due to its durable construction. Its precise design ensures reliable performance, making it suitable for various electronics and automotive applications. This crimp contact is sold individually, ensuring convenience for small-scale projects and repairs.

Type	Crimp contact
Pin or Socket	Male
Wire Gauge	24 - 20
Application	Power, Wire-to-Wire
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Compliant per SJ/T 11365-2006
Current maximum per contact	7.0A
Delivery unit	84000
Design registration eligibility	true
Durability mating cycles max	30
ELV status	Compliant per 2000/53/EC
Engineering number	43031-0001
First published date	2007-05-16
G a d s l/ i m d s	Compliant with Exemption 44
Gender	Male
H f l h status	Low-Halogen per IEC 61249-2-21
Material metal	Phosphor Bronze
Material plating mating	Tin
Material plating termination	Tin
Material type	Finished Goods
Minimum line quantity	84000
Net weight	0.061/g
Packaging Type	Reel
Plating min mating	1.016µm
Plating min termination	1.016µm
Primary pack qty	12000
Product name	Micro-Fit 3.0
Product number display	430310001
Product number hyphen	43031-0001
Product number sap	0430310001
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	43031
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Taxonomy	Crimp Terminals
Termination interface style	Crimp or Compression
Upc	800753683679
Wire insulation diameter	1.85mm max.
Wire size awg	20, 22, 24
