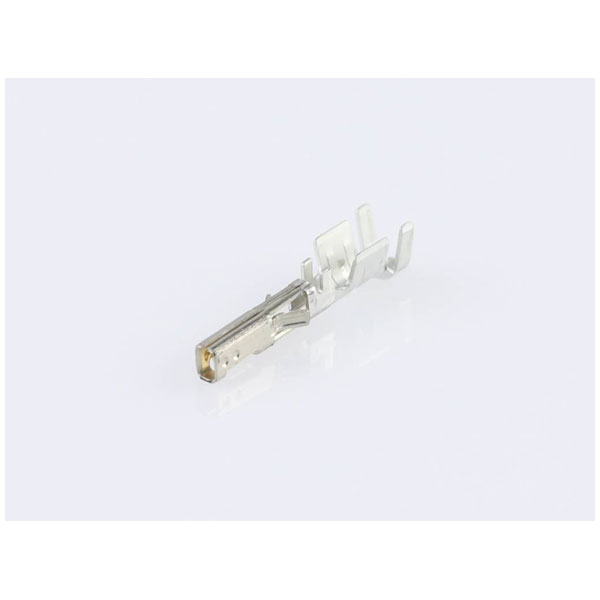

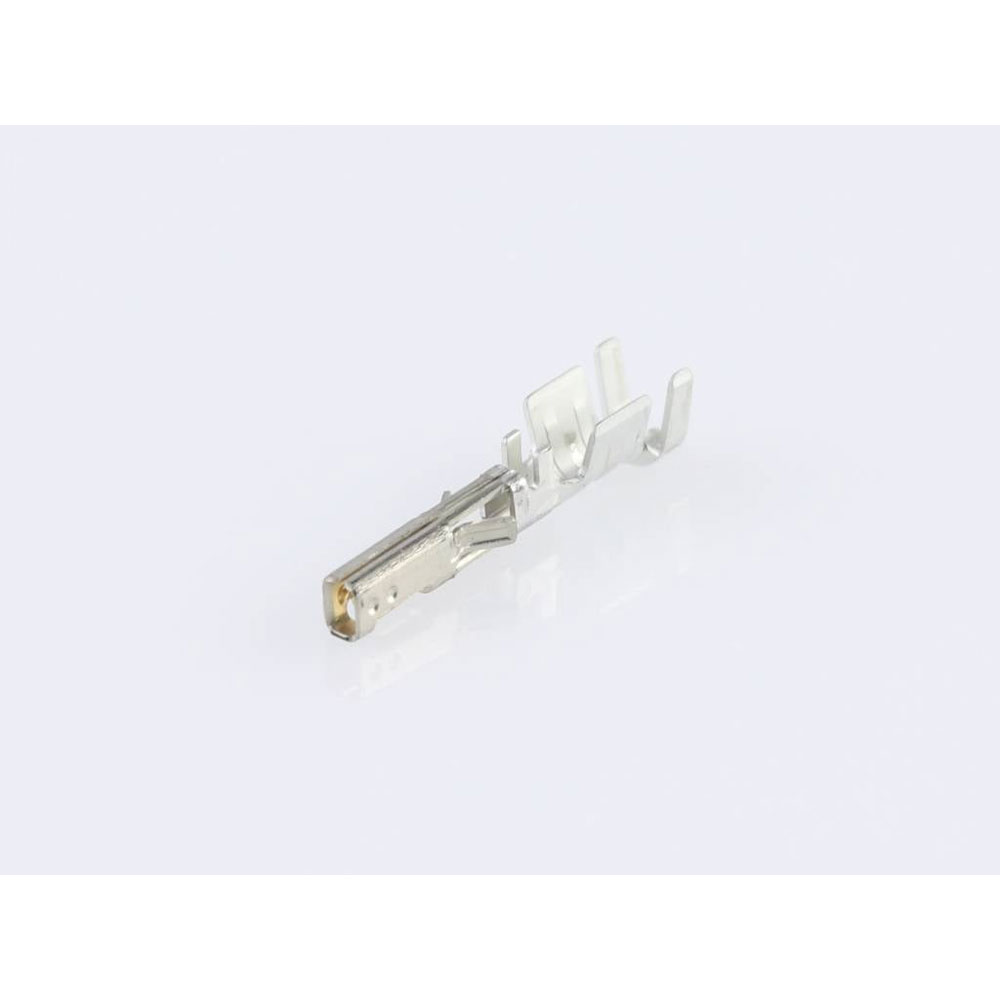

Molex 430300005 Micro-fit 3.0 Female Crimp Terminal 26-30 AWG Gold Plated

Molex
Order Code:

05-3631

Brand: Molex MPN: 430300005 EAN-13: 2050009143695
Qty Unit Price (Ex VAT)
100+ £0.064
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
4,319 in stock, despatched in 4 working days

The Molex 430300005 crimp contact is a singular piece designed for reliable electrical connections. It features precision engineering for secure wire attachment. Typically used in automotive, industrial, and electronic applications.
Type Crimp contact
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Current maximum per contact 4.5A
Delivery unit 84000
Design registration eligibility true
Durability mating cycles max 30
ELV status Compliant per 2000/53/EC
Engineering number 43030-0005
First published date 2007-05-16
G a d s l/ i m d s Compliant with Exemption 34; 44; 33
Gender Female
H f l h status Low-Halogen per IEC 61249-2-21
Material metal Phosphor Bronze
Material plating mating Gold
Material plating termination Tin
Material type Finished Goods
Minimum line quantity 84000
Net weight 0.057/g
Packaging Type Reel
Plating min mating 0.381µm
Plating min termination 2.540µm
Primary pack qty 12000
Product name Micro-Fit 3.0
Product number display 430300005
Product number hyphen 43030-0005
Product number sap 0430300005
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 43030
Ro h s status Compliant per EU 2015/863
Sampleable True
Taxonomy Crimp Terminals
Termination interface style Crimp or Compression
Upc 800754369206
Wire insulation diameter 1.27mm max.
Wire size awg 26, 28, 30
