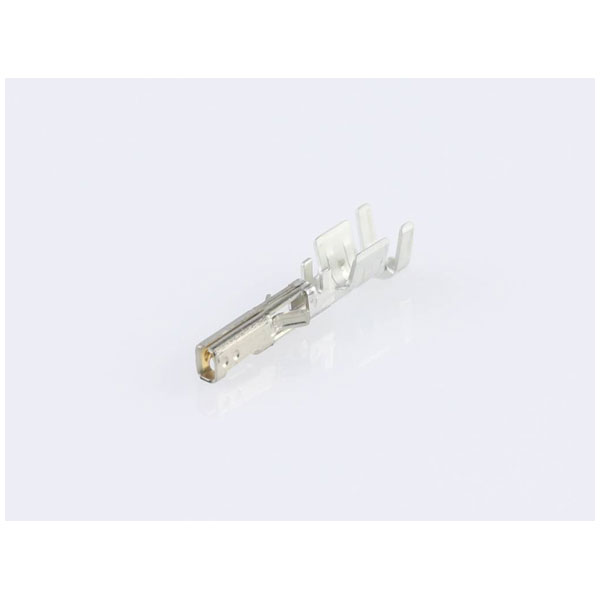

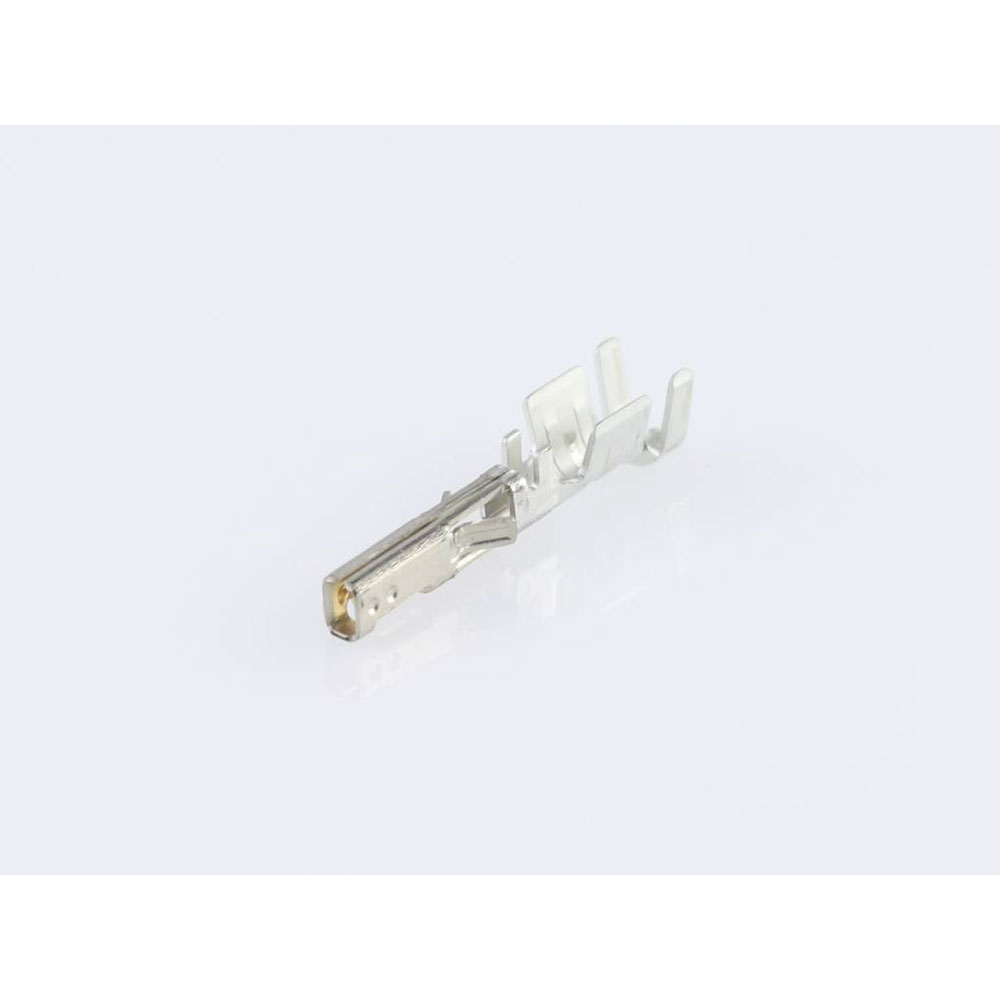

Molex 430300003 Micro-fit 3.0 Crimp Terminal Female Gold 20-24 AWG

Molex
Order Code:

05-3629

Brand: Molex MPN: 430300003 EAN-13: 2050009142117
Qty Unit Price (Ex VAT)
100+ £0.080
1000+ £0.076
3000+ £0.068
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,000 in stock, despatched same dayBack-order availability date - 25/04/2026

Molex manufactures the Micro Fit 430300003, a crimp contact designed for reliable electrical connections. It features a robust construction suitable for various applications requiring strong signal integrity. Commonly used in automotive, consumer electronics, and industrial equipment, it ensures secure and efficient wiring.
Type Crimp contact
Wire Gauge 24 - 20
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Connector Type Socket
Contact Finish Phosphor bronze
Current maximum per contact 7.0A
Delivery unit 84000
Design registration eligibility true
Durability mating cycles max 30
ELV status Compliant per 2000/53/EC
Engineering number 43030-0003
First published date 2007-05-16
G a d s l/ i m d s Compliant with Exemption 44; 34; 33
Gender Female
H f l h status Low-Halogen per IEC 61249-2-21
Material metal Phosphor Bronze
Material plating mating Gold
Material plating termination Tin
Material type Finished Goods
Minimum line quantity 84000
Misc Attribute MOL Power & Signal Sol.
Net weight 0.099/g
Packaging Type Tape on Full reel
Plating min mating 0.762µm
Plating min termination 2.540µm
Primary pack qty 12000
Product name Micro-Fit 3.0
Product number display 430300003
Product number hyphen 43030-0003
Product number sap 0430300003
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 43030
Ro h s status Compliant per EU 2015/863
Sampleable True
Taxonomy Crimp Terminals
Termination interface style Crimp or Compression
Test current 8.5A
Upc 800754369169
Wire insulation diameter 1.85mm max.
Wire size awg 20, 22, 24
