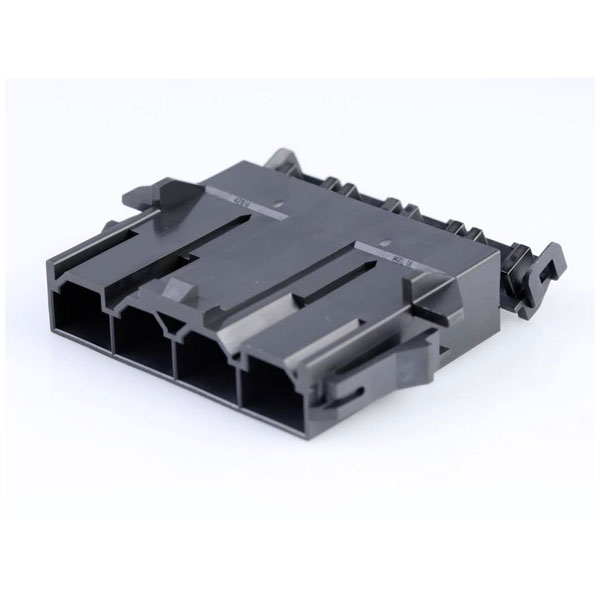

The Molex socket housing cable, part number 428180412, features 4 pins with a contact spacing of 10 mm. It is typically used in electronic and electrical applications for connecting wires securely. Manufactured by Molex, this durable component is ideal for creating reliable electrical connections in various devices.
| Type |
Socket housing cable |
| Pitch |
10.00mm |
| Number of Ways |
4 |
| Number of Rows |
1 |
| Application |
Power, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Polyester |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
4 |
| Color resin |
Black |
| Colour |
Black |
| Connector Type |
Plug |
| CS |
10mm |
| Csa |
LR19980 |
| Delivery unit |
400 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering number |
428180412 |
| Engineering Series Name |
MF SR PLUG HSG |
| Engineering Series No |
42818 |
| First published date |
2007-05-16 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Plug |
| Glow wire capable |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Max. temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
1600 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
9.089/g |
| Nominal Current |
50A |
| Nominal current - rounded value |
50A |
| Packaging Type |
Bag |
| Panel mount |
Yes |
| Pitch termination interface |
10.00mm |
| Polarized to mating part |
Yes |
| Primary pack qty |
400 |
| Product name |
Mini-Fit Sr. |
| Product number display |
428180412 |
| Product number hyphen |
42818-0412 |
| Product number sap |
0428180412 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
42818 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +105°C |
| Ul |
E29179 |
| Upc |
800754382106 |
