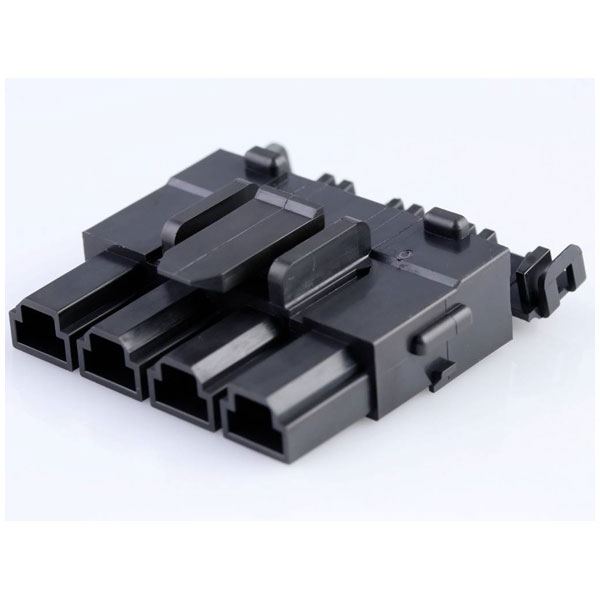

Molex 428160412 Mini-fit Sr. Receptacle Housing 4 Circuit Black

The Molex socket housing cable 428160412 is a high-quality electrical component designed for secure and reliable connections. Typically used in electronic and electrical applications, it features robust construction to ensure durability. It serves as an essential part in harnessing systems for various industrial and commercial environments.

Type	Socket housing cable
Pitch	10.00mm
Number of Rows	1
Mounting Type	Cable mount
Mounting Direction	Straight
Application	Power, Wire-to-Board, Wire-to-Wire
Base unit of measure	PC
Base unit of measure desc	piece
China ro h s status	Compliant per SJ/T 11365-2006
Circuits maximum	4
Colour resin	Black
Csa	LR19980
Delivery unit	500
Design registration eligibility	true
ELV status	Compliant per 2000/53/EC
Engineering number	42816-0412
Engineering Part No	42816-0412
Engineering Series Name	MF SR RECEPT HSG
Engineering Series No	42816
First published date	2007-05-16
Flammability	94V-0
G a d s l/ i m d s	Not Relevant
Gender	Receptacle
Glow wire capable	No
H f l h status	Not Low-Halogen per IEC 61249-2-21
Keying to mating part	No
Lock to mating part	Yes
Material resin	Polyester
Material type	Finished Goods
Minimum line quantity	1500
Net weight	8.240/g
Packaging Type	Bag
Panel mount	No
Pitch termination interface	10.00mm
Polarized to mating part	Yes
Primary pack qty	500
Product name	Mini-Fit Sr.
Product number display	428160412
Product number hyphen	42816-0412
Product number sap	0428160412
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	42816
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Stackable	No
Taxonomy	Connector Housings
Temperature range operating	-40° to +105°C
Ul	E29179
Upc	800754381772
