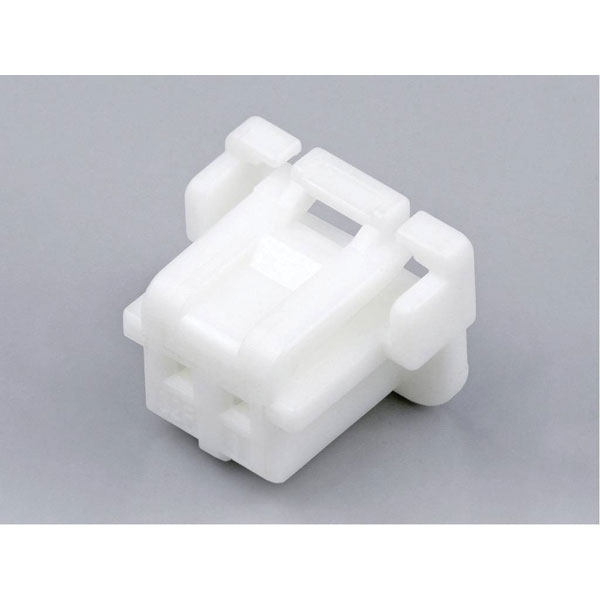

The Molex socket housing cable, part number 395300002, features 2 pins with a contact spacing of 5.08 mm. Manufactured by Molex, this component is ideal for applications requiring secure and reliable electrical connections. Common uses include connecting wiring harnesses in electronic devices and automotive applications.
| Type |
Socket housing cable |
| Pitch |
5.08mm |
| Number of Ways |
2 |
| Number of Rows |
1 |
| Application |
Wire-to-Board |
| AWG (min.) |
26 |
| AWG max. |
12 |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| China ro h s status |
50 Image per SJ/T 11365-2006 |
| Circuits loaded |
2 |
| Circuits maximum |
2 |
| Colour resin |
Black |
| Component type |
Plug |
| Connector orientation |
Parallel (to the PCB) |
| CS |
5.08mm |
| Current maximum per contact |
18.0A |
| Delivery unit |
2160 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering number |
395300002 |
| Engineering Series Name |
Euro 5.08 plugs head |
| Engineering Series No |
39530 |
| Entry angle |
Vertical |
| First published date |
2007-06-08 |
| G a d s l/ i m d s |
Not Relevant |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
Yes |
| Material type |
Finished Goods |
| max. cross section |
3.31mm² |
| Max. temperature |
+105°C |
| Min. cross section |
0.13mm² |
| Min. temperature |
-40°C |
| Minimum line quantity |
4320 |
| Misc Attribute |
Molex MOL Industrial Solution |
| Net weight |
3.400/g |
| Nominal Current |
18A |
| Nominal current - rounded value |
18A |
| Nominal Voltage |
300V |
| Panel mount |
No |
| Pitch termination interface |
5.08mm |
| Polarized to mating part |
Yes |
| Product name |
Eurostyle Pluggable |
| Product number display |
395300002 |
| Product number hyphen |
39530-0002 |
| Product number sap |
0395300002 |
| Prop risk status |
Cancer, Developmental toxicity, Reproductive toxicity |
| Prop sub status |
Lead compounds |
| Reach status |
Contains Lead per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
39530 |
| Ro h s status |
Compliant with Exemption 6(c) per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Terminal Blocks and Barrier Strip |
| Temperature range operating |
-40° to +105°C |
| Ul |
E48521 |
| Upc |
822350531078 |
| Voltage maximum |
300V |
| Wire size awg |
12, 14, 16, 18, 20, 22, 24, 26 |
| Wire size mm |
0.13-3.31 |
