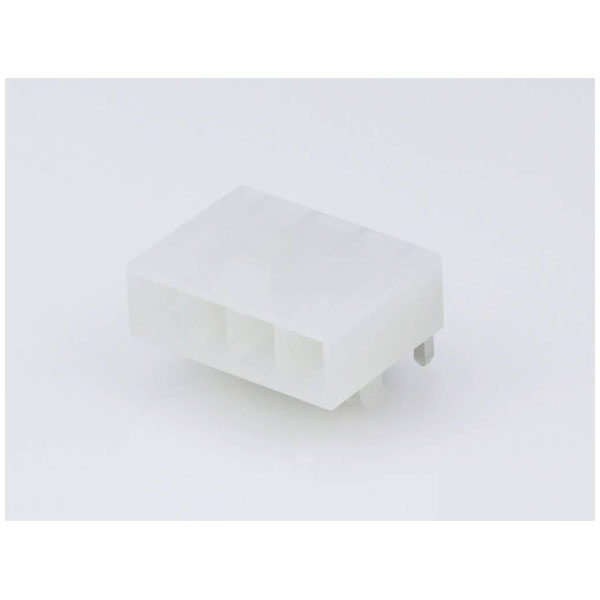

Molex 39303045 Mini-fit Jr. 4-circuit Right-angle Sil Socket 4.2 Mm Spacing

Molex
Order Code:

05-3556

Brand: Molex MPN: 39303045 EAN-13: 2050007110002
Qty Unit Price (Ex VAT)
5+ £0.848
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
20 in stock, despatched in 4 working days

The Molex 39303045 is a built-in SIL socket with a total of 4 pins and a contact spacing of 4.2 mm. It is designed for secure and standard electrical connections, typically used in electronics and automotive applications. Manufactured by Molex, this component offers reliable performance in circuit board integration.
Type Built-in SIL socket (standard)
Number of Positions 4
Number of Rows 1
Orientation Parallel (to the PCB)
Contact Plating Tin
Board contact surface Tin
Case Material Nylon (NL)
Coating thickness (PCB side) 2.54µm
Colour Ecru
Connection Soldering
Connector coating thickness 2.54µm
Cross Section 4.2mm
Engineering Part No 5569-04A4
Engineering Series Name MINIFIT JR RA HDR
Engineering Series No 05569
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 13A
Nominal Voltage 600V
Packaging Type Bag
