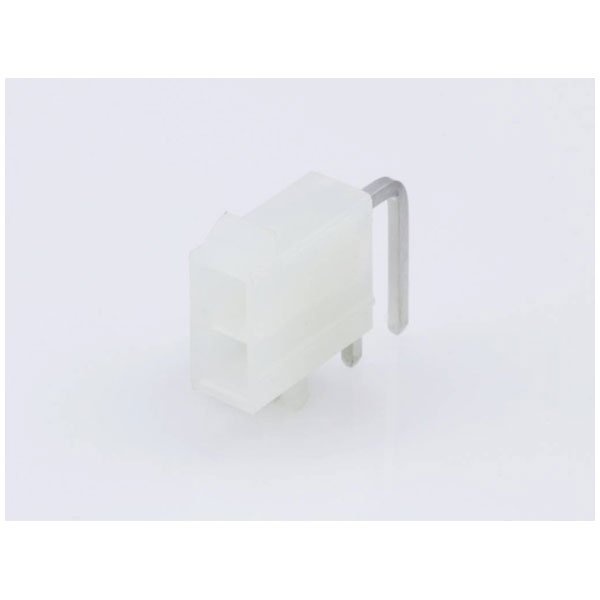

Molex 39301020 Mini-fit Jr. Sil Socket 2 Pins 4.2mm Spacing

Molex
Order Code:

05-3545

Brand: Molex MPN: 39301020 EAN-13: 2050007109778
Qty Unit Price (Ex VAT)
20+ £0.308
100+ £0.264
375+ £0.262
1500+ £0.260
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,115 in stock, despatched in 4 working days

The Molex Built-in SIL socket has a total of 2 pins with a contact spacing of 4.2 mm. Manufactured by Molex, this component is ideal for applications requiring reliable single-in-line socket connections. It is commonly used in electronic and electrical assemblies where compact and secure connections are needed.
Type Built-in SIL socket (standard)
Number of Positions 2
Number of Rows 2
Orientation Parallel (to the PCB)
Contact Plating Tin
Board contact surface Tin
Case Material Nylon (NL)
Coating thickness (PCB side) 2.54µm
Colour Ecru
Connection Soldering
Connector coating thickness 2.54µm
Cross Section 4.2mm
Engineering Part No 5569-02A2
Engineering Series Name MINIFIT JR RA HDR
Engineering Series No 05569
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 13A
Nominal Voltage 600V DC/AC
Packaging Type Bag
