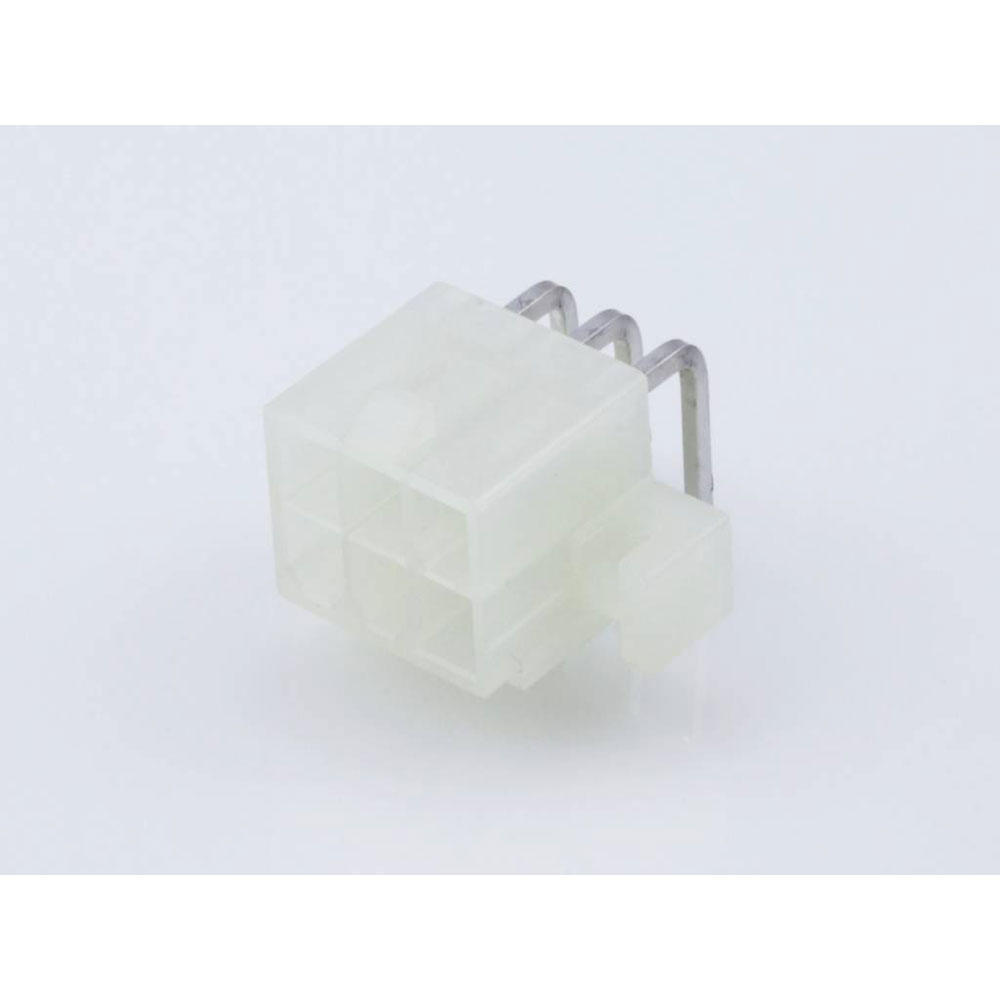

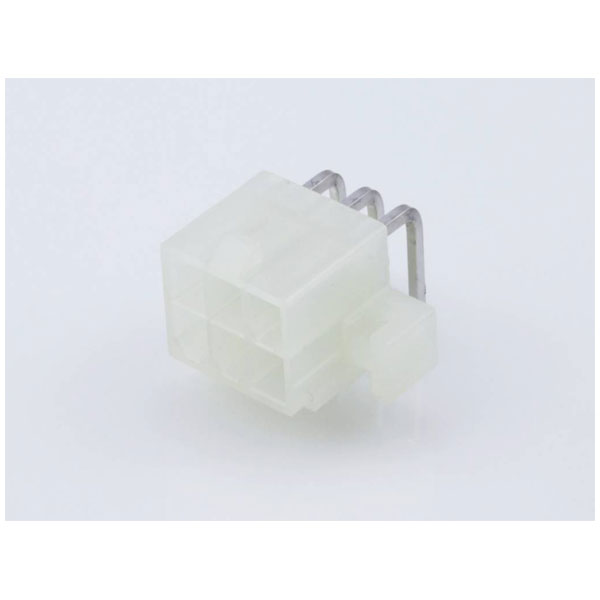

Molex 39291068 Mini-fit Jr. Header 6 Pins 4.2mm Pitch Right-angle

Molex
Order Code:

05-3536

Brand: Molex MPN: 39291068 EAN-13: 2050007107477
Qty Unit Price (Ex VAT)
10+ £1.24
1000+ £0.688
1500+ £0.683
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
10 in stock, despatched in 4 working days

The Molex 39291068 is a standard built-in SIL socket featuring 6 pins with a contact spacing of 4.2 mm. Manufactured by Molex, this component is ideal for applications requiring reliable electrical connections in electronic circuits. It is commonly used in consumer electronics and automation systems, delivered in a handy 1-piece bag packaging.
Type Built-in SIL socket (standard)
Number of Positions 6
Number of Rows 2
Orientation Parallel (to the PCB)
Contact Plating Tin
Board contact surface Tin
Case Material Nylon (NL)
Coating thickness (PCB side) 2.54µm
Colour Ecru
Connection Soldering
Connector coating thickness 2.54µm
Cross Section 4.2mm
Engineering Part No 5569-06A1
Engineering Series Name MINIFIT JR RA HDR
Engineering Series No 05569
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 13A
Nominal Voltage 600V
Packaging Type Bag
