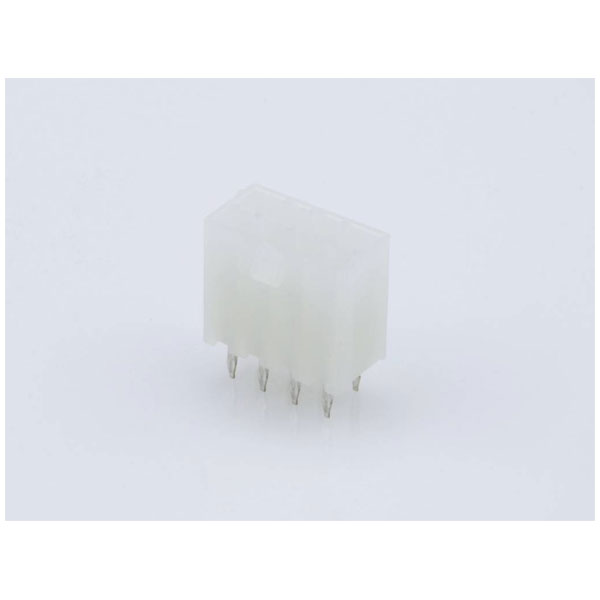

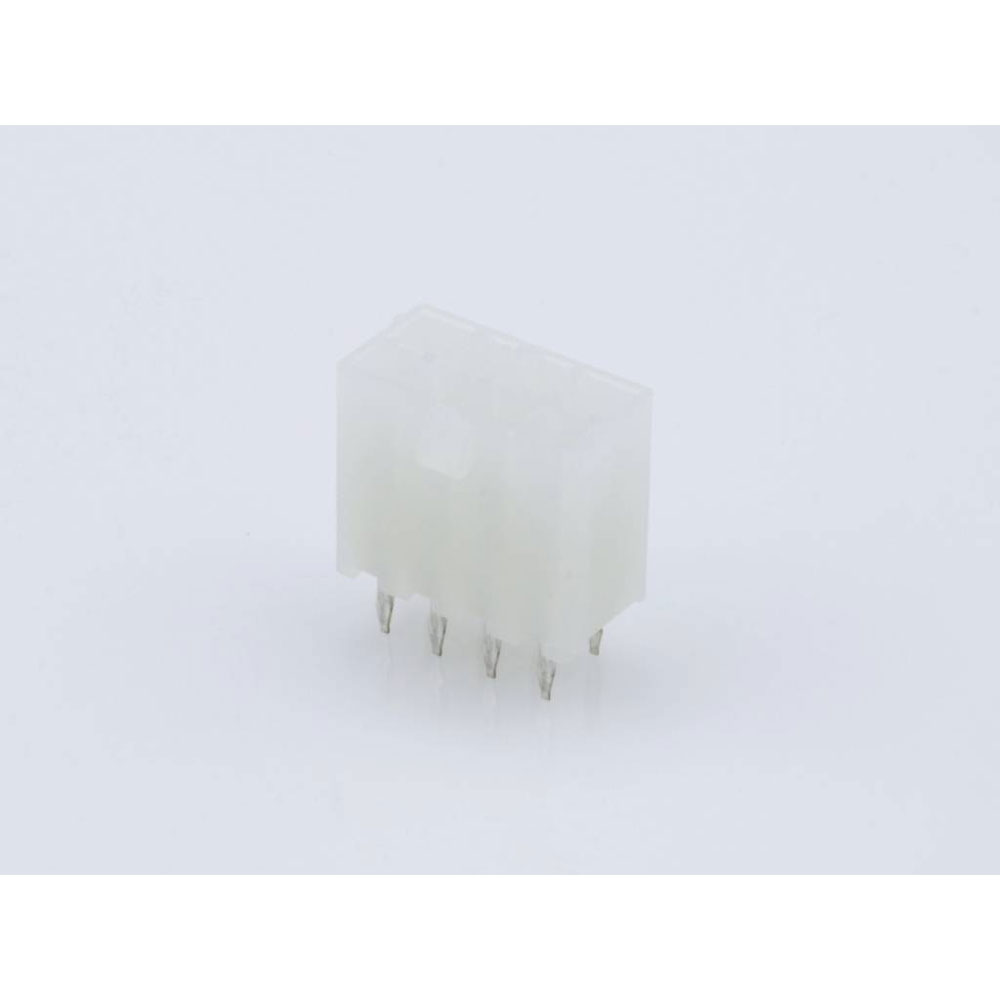

Molex 39281083 Mini-fit Jr. Sil Socket 8-pin 4.2mm Pitch PCB Mount

Molex
Standard range
Order Code:

05-3521

Brand: Molex MPN: 39281083
Qty Unit Price (Ex VAT)
1+ £0.495
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
197 in stock, despatched in 4 working days

The Molex Built-in SIL socket, model 39281083, features 8 pins with a contact spacing of 4.2 mm, ideal for standard electrical connections. Manufactured by Molex, this component ensures reliable connectivity and is commonly used in electronic circuit boards and prototyping. Packaged in a convenient bag, it is suited for applications requiring secure and precise socket contacts.
Type Built-in SIL socket (standard)
Board contact surface Tin
Case material Nylon (NL)
Coating thickness (PCB side) 0.889µm
Connection Soldering
Connector coating thickness 0.889µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact material Brass
CS 4.2mm
Engineering Part No 5566-08A
Engineering Series Name MINIFIT JR HDR VERT
Engineering Series No 05566
Factory colour Ecru
Manufacturer part # 39281083
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
No. of rows 2
Nominal current 9A
Nominal current - rounded value 9A
Nominal voltage 600V
Packaging type Bag
RoHS-compliant Yes
Total number of pins 8
