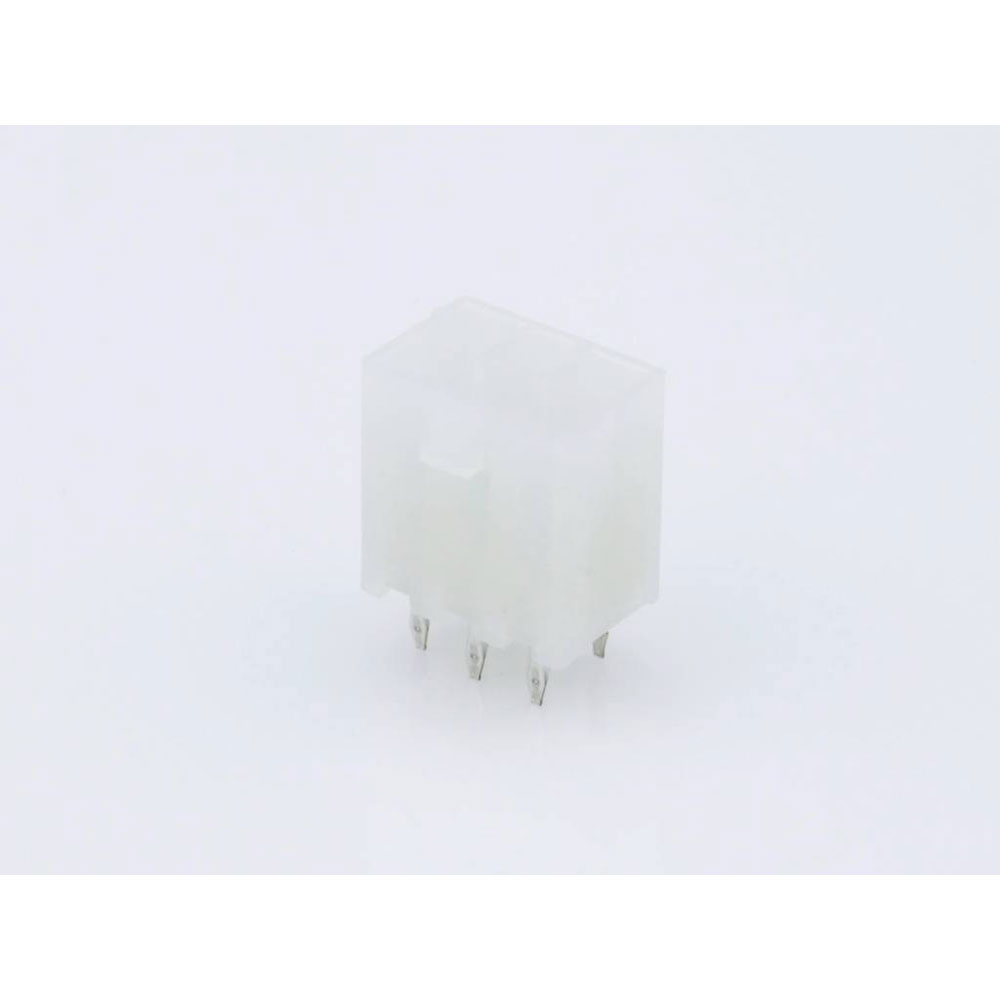

Molex 39281063 Mini-fit Jr. Sil Socket 6 Pin 4.2mm Pitch Tin Finish

Molex
Order Code:

05-3520

Brand: Molex MPN: 39281063 EAN-13: 2050007107217
Qty Unit Price (Ex VAT)
5+ £1.04
100+ £0.870
375+ £0.835
1500+ £0.732
3000+ £0.726
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
605 in stock, despatched in 4 working days

The Molex Built-in SIL socket is a standard connector with six pins and a contact spacing of 4.2 mm. Manufactured by Molex, it is typically used in electronic assemblies requiring reliable and precise connections. Its compact design and standard configuration make it ideal for use in various industrial and consumer electronics applications.
Type Built-in SIL socket (standard)
Number of Positions 6
Number of Rows 2
Board contact surface Tin
Case Material Nylon (NL)
Coating thickness (PCB side) 0.889µm
Colour Ecru
Connection Soldering
Connector coating thickness 0.889µm
Contact Plating Tin
Cross Section 4.2mm
Engineering Part No 5566-06A
Engineering Series Name MINIFIT JR HDR VERT
Engineering Series No 05566
Max. temperature +105°C
Min. temperature -40°C
Nominal Current 9A
Nominal Voltage 600V
Orientation Perpendicular (to the PCB)
Packaging Type Bag
