Molex 39014053 Mini-fit Jr. Plug Housing 5-pin Natural Panel Mount

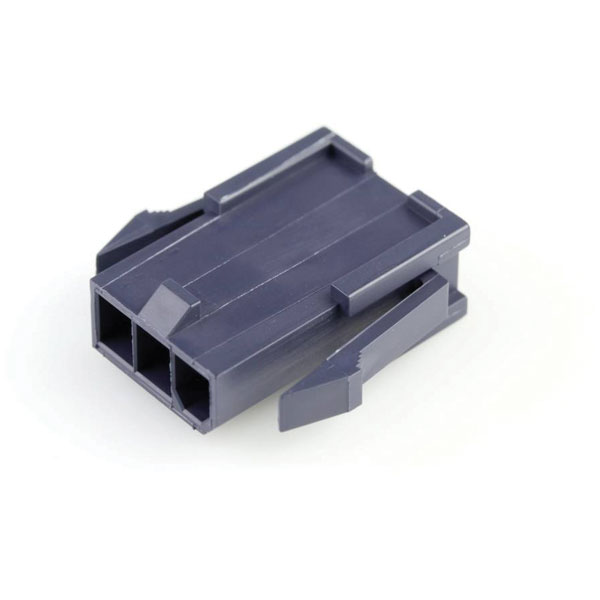

Image Representative of Range

Molex 39014053 Mini-fit Jr. Plug Housing 5-pin Natural Panel Mount

Molex
Order Code:

05-3513

Brand: Molex MPN: 39014053 EAN-13: 2050008573905
Qty Unit Price (Ex VAT)
10+ £0.410
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
30 in stock, despatched in 4 working days

The Molex socket housing cable, model 39014053, is a durable connector with a total of 5 pins. It is designed for secure and reliable communication in various electronic assemblies. Typical applications include use in consumer electronics and automotive systems.
Type Socket housing cable
Pitch 4.20mm
Number of Ways 5
Number of Rows 1
Application Power, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 5
Color resin Natural
Colour Ecru
Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information.
Csa LR19980
Delivery unit 3000
Design registration eligibility false
ELV status Not Relevant
Engineering number 5559-05P2-210
Engineering Part No 5559-05P2-210
Engineering Series Name MINIFIT JR PLUG HSG
Engineering Series No 05559
First published date 2007-05-16
Flammability 94V-0
G a d s l/ i m d s Not Relevant
Gender Plug
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Finished Goods
Minimum line quantity 12000
Net weight 2.099/g
Packaging Type Bulk
Panel mount Yes
Pitch termination interface 4.20mm
Polarized to mating part Yes
Primary pack qty 3000
Product name Mini-Fit Jr.
Product number display 39014053
Product number hyphen 39-01-4053
Product number sap 0039014053
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 5559
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800753584129
