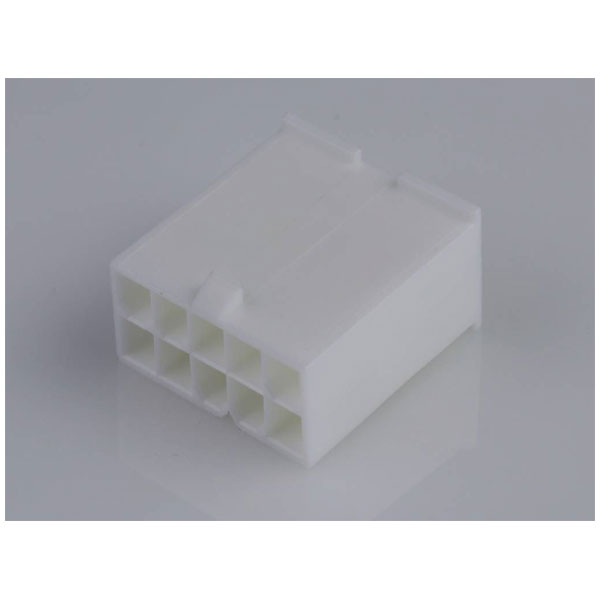

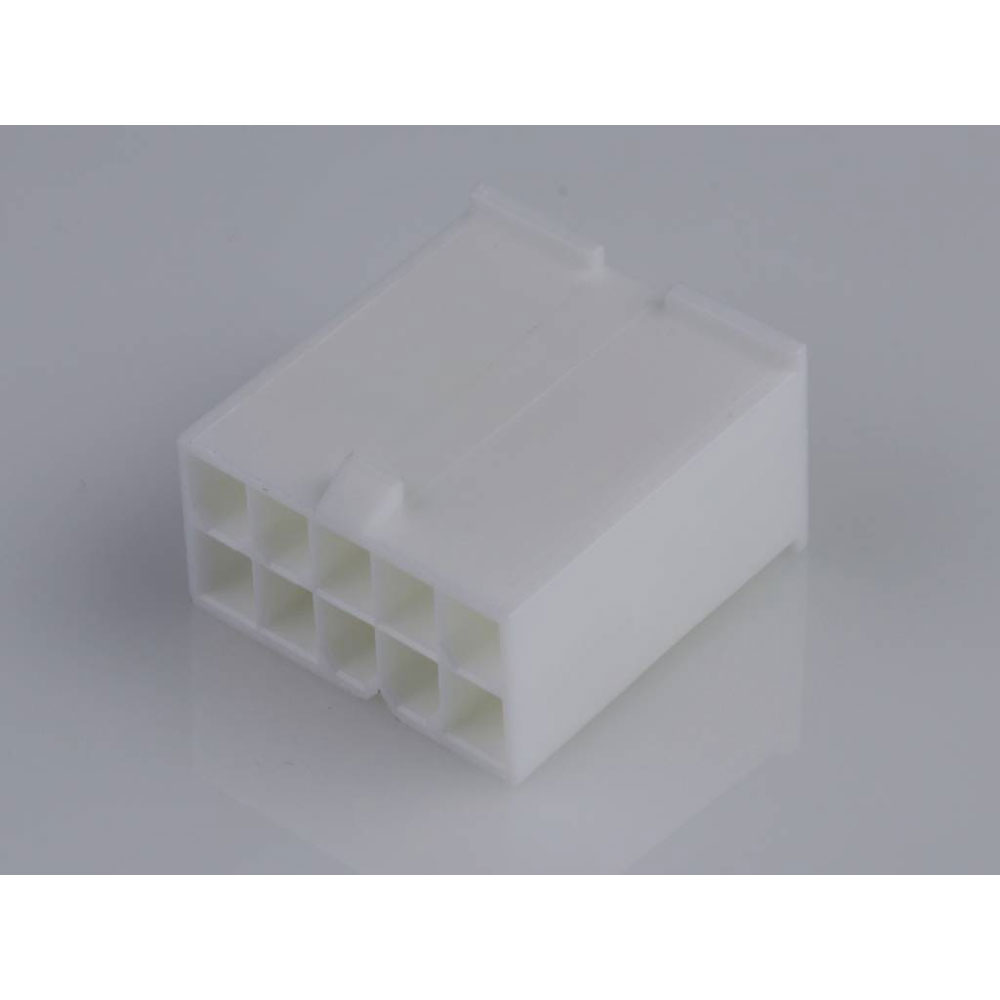

Molex 39013109 Mini-fit Jr. Plug Housing 10 Circuits Ul 94v-0 Natural

Molex
Order Code:

05-3498

Brand: Molex MPN: 39013109 EAN-13: 2050007328384
Qty Unit Price (Ex VAT)
10+ £0.450
100+ £0.415
375+ £0.412
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
179 in stock, despatched in 4 working days

Molex manufactures the 39013109 pin housing cable, which is designed for secure electrical connections. This part features reliable insulation and is suitable for use in both industrial and electronic applications. Its robust construction ensures durability and efficiency in various wiring installations.
Type Pin housing cable
Pitch 4.20mm
Number of Rows 2
Application Power, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 10
Colour resin Natural
Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information.
Csa LR19980
Delivery unit 2400
Design registration eligibility false
ELV status Not Relevant
Engineering number 5559-10P1-210
Engineering Part No 5559-10P1-210
Engineering Series Name MINIFIT JR PLUG HSG
Engineering Series No 05559
First published date 2007-05-16
Flammability 94V-0
G a d s l/ i m d s Not Relevant
Gender Plug
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Finished Goods
Minimum line quantity 9600
Net weight 3.000/g
Packaging Type Bag
Panel mount No
Pitch termination interface 4.20mm
Polarized to mating part Yes
Primary pack qty 2400
Product name Mini-Fit Jr.
Product number display 39013109
Product number hyphen 39-01-3109
Product number sap 0039013109
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 5559
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800754204040
